2″ (DN50) Class 150 Slip-On Flange

OD: 152.4mm | Bore: 62mm | PCD: 120.7mm | 4x19.1mm Holes

ASME B16.5 Slip-On 2″ Class 150 RF

Outside Dia (OD)

152.4 mm (6.00″)

Bore ID (B)

62.0 mm (2.44″)

Hub Diameter (H)

77.7 mm

Flange Thickness (C)

19.1 mm

Bolt Circle (PCD)

120.7 mm

Bolt Holes

4 × Ø19.1mm (⅝″)

Download 3D STEP (.stp) Download 2D DXF / DWG

Daily Limit: 0 / 5 used 5 remaining

IP: Checking... Max 5 CAD/day per IP

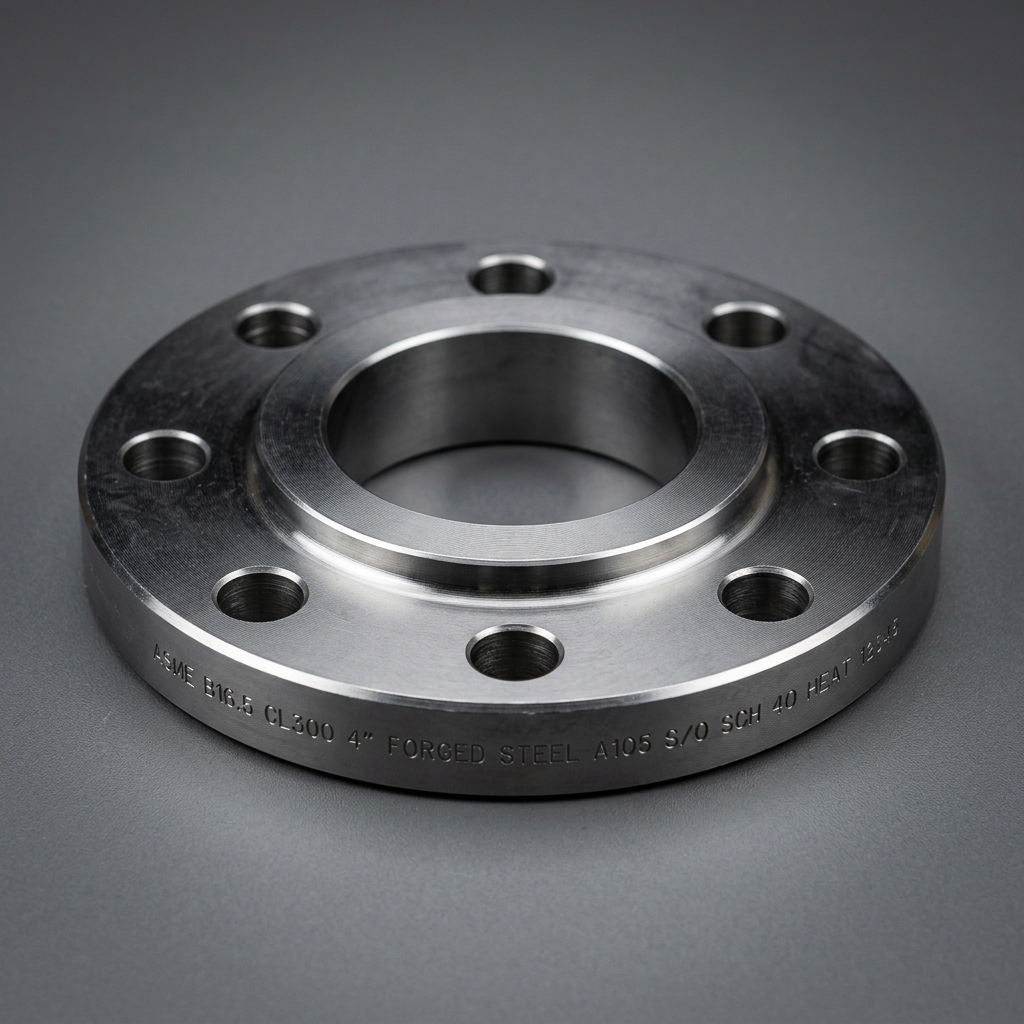

ASME B16.5 Slip-On Flange CAD Models & Dimensions

Flange Designation	Pipe Size (NPS / DN)	OD (O)	Bore (B)	Hub (H)	Thk (C)	LTH (Y)	PCD	Bolt Holes	Weight	CAD Downloads

3D & 2D CAD Formats

Standard ISO 10303-21 STEP (.stp) solids and AutoCAD (.dxf) drawings. Directly importable into SolidWorks, Autodesk Inventor, Fusion 360, Catia, NX, and AutoCAD.

Engineering Design Codes

Modeled according to ASME B16.5 (Flanges), ASME B36.10M (Pipes), ASME B16.9 (Fittings), ISO 4014 (Fasteners), and BS 4-1 (Structural Steel).

Daily Rate Limit

Standard download quota is 5 CAD files / day per IP address. For full enterprise batch catalog access or custom parametric components, contact the CADRILL engineering team.
