From concept and reverse engineering to manufacture-ready CAD, fabrication drawings and 3D scanning.

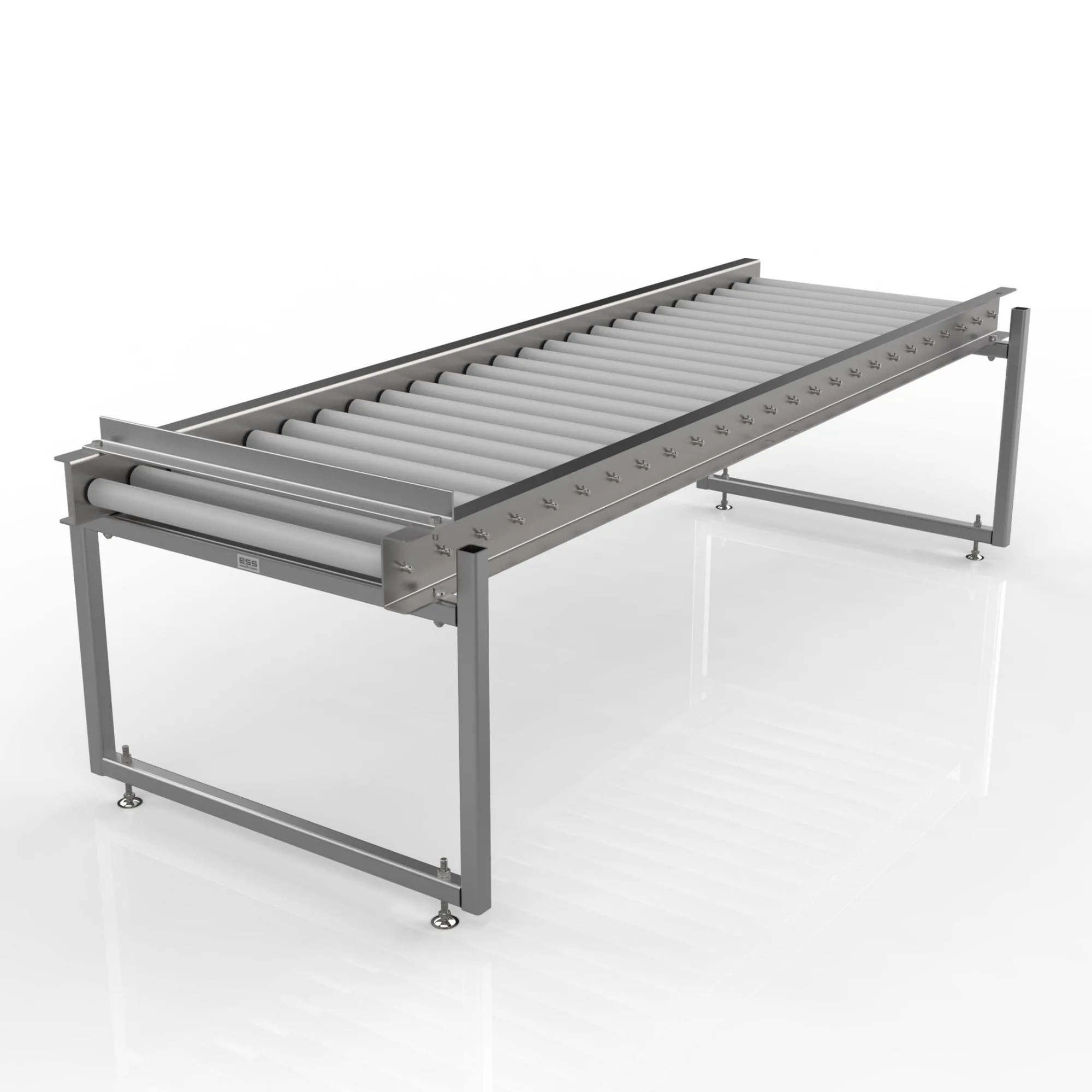

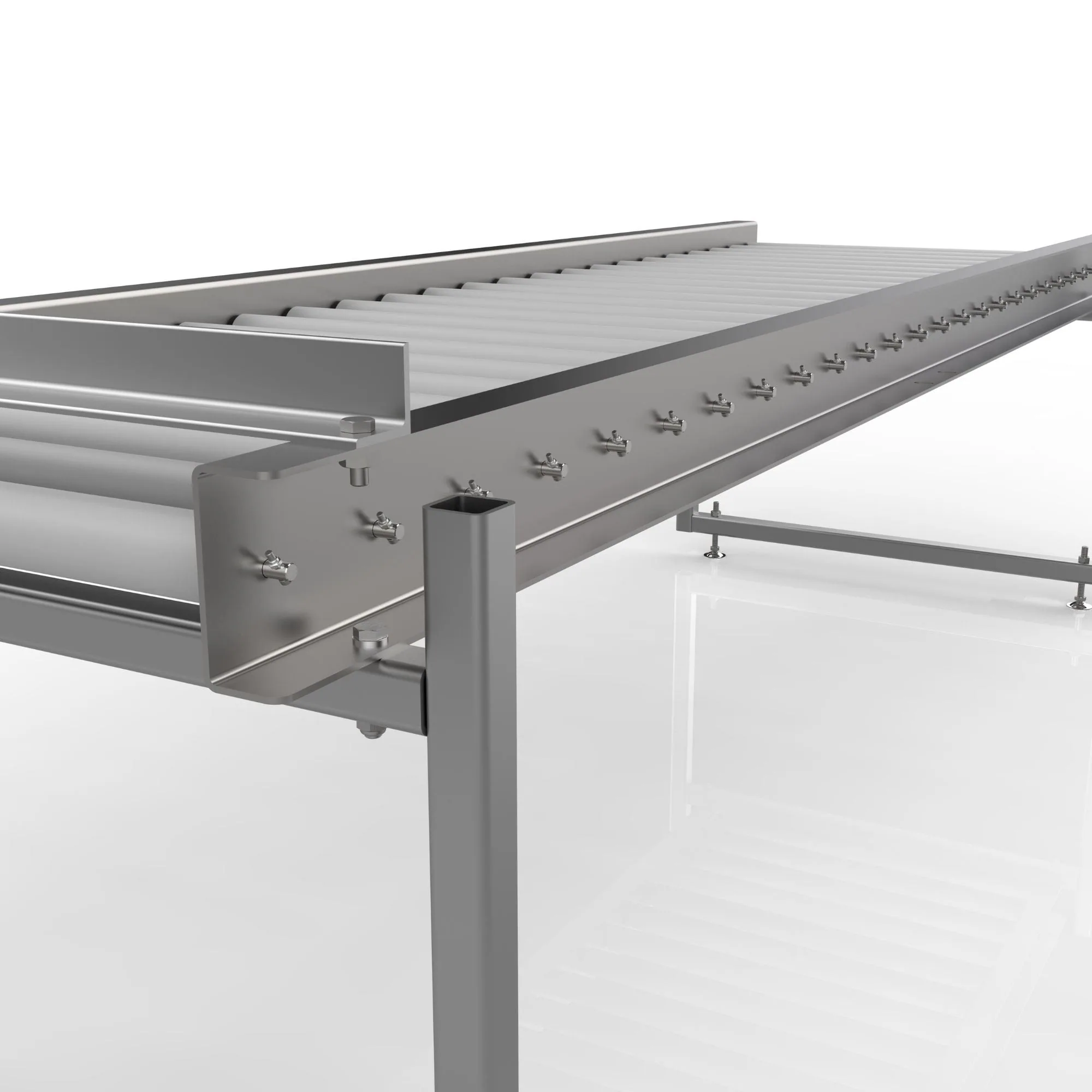

Bespoke continuous conveyor system engineered for industrial material handling, fully detailed in 3D CAD with manufacturing drawings, structural steel frame, drive-end tensioning, and complete BOM ready for fabrication.
High-torque motorized drum roller drives the industrial belt with crowned pulley geometry to ensure positive self-aligning tracking under heavy asymmetric loads.
Rigid structural steel bed frame absorbs severe dynamic shock loads while modular low-friction side skirt guides eliminate particulate spillage.
Precision screw-tensioning take-up brackets at the tail terminal enable rapid single-operator belt tracking and tension alignment without dismantling.

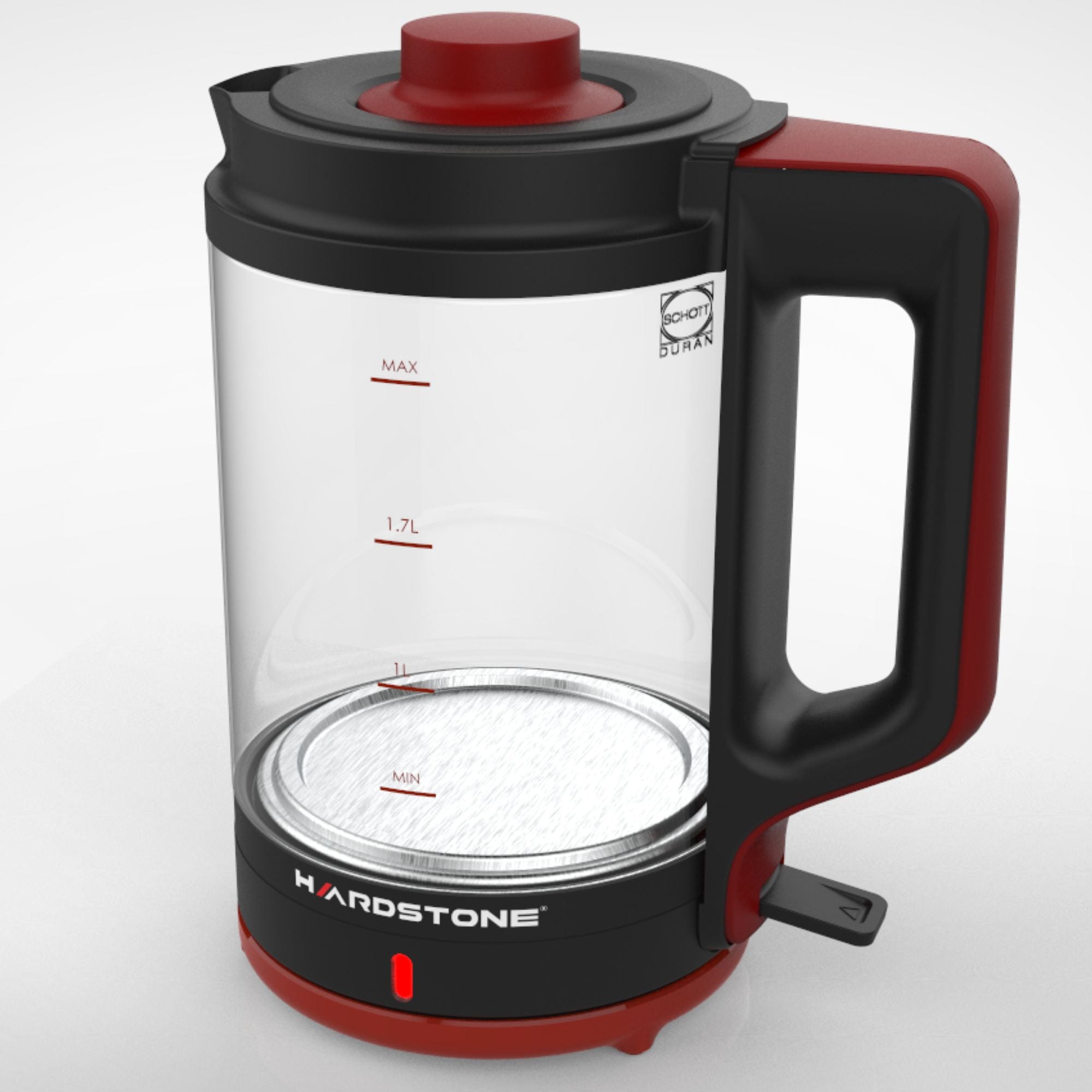

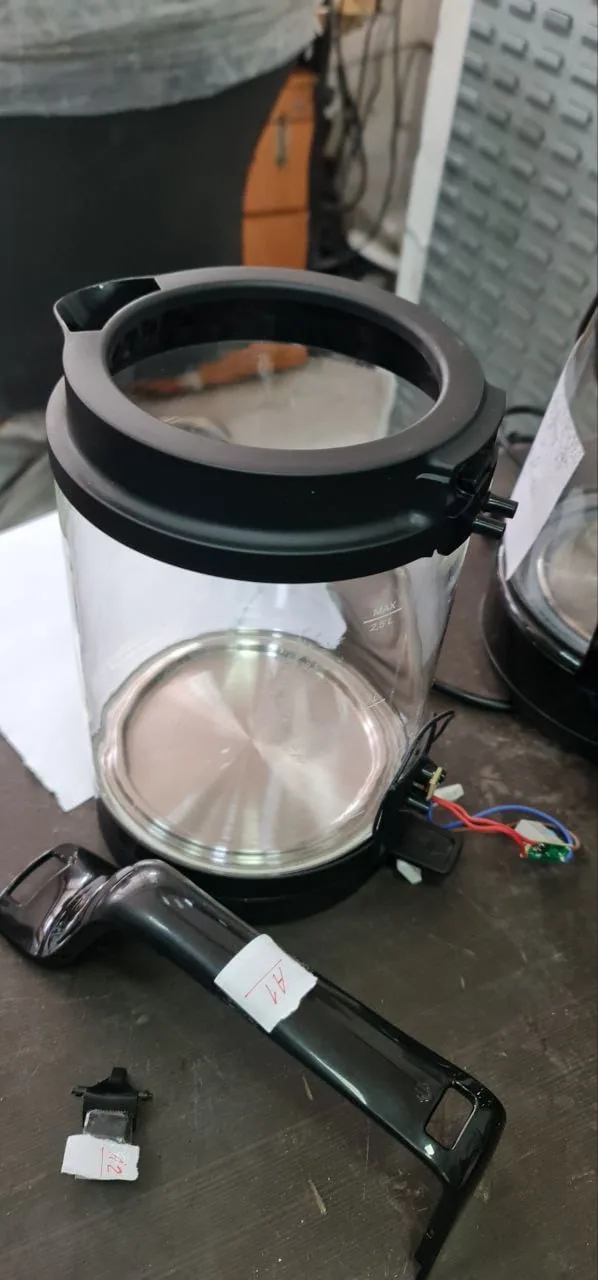

Full-cycle consumer appliance engineering for Hardstone, from industrial design concepts to manufacture-ready injection-moulded polymer tooling CAD, thermal management, and glass carafe geometry.

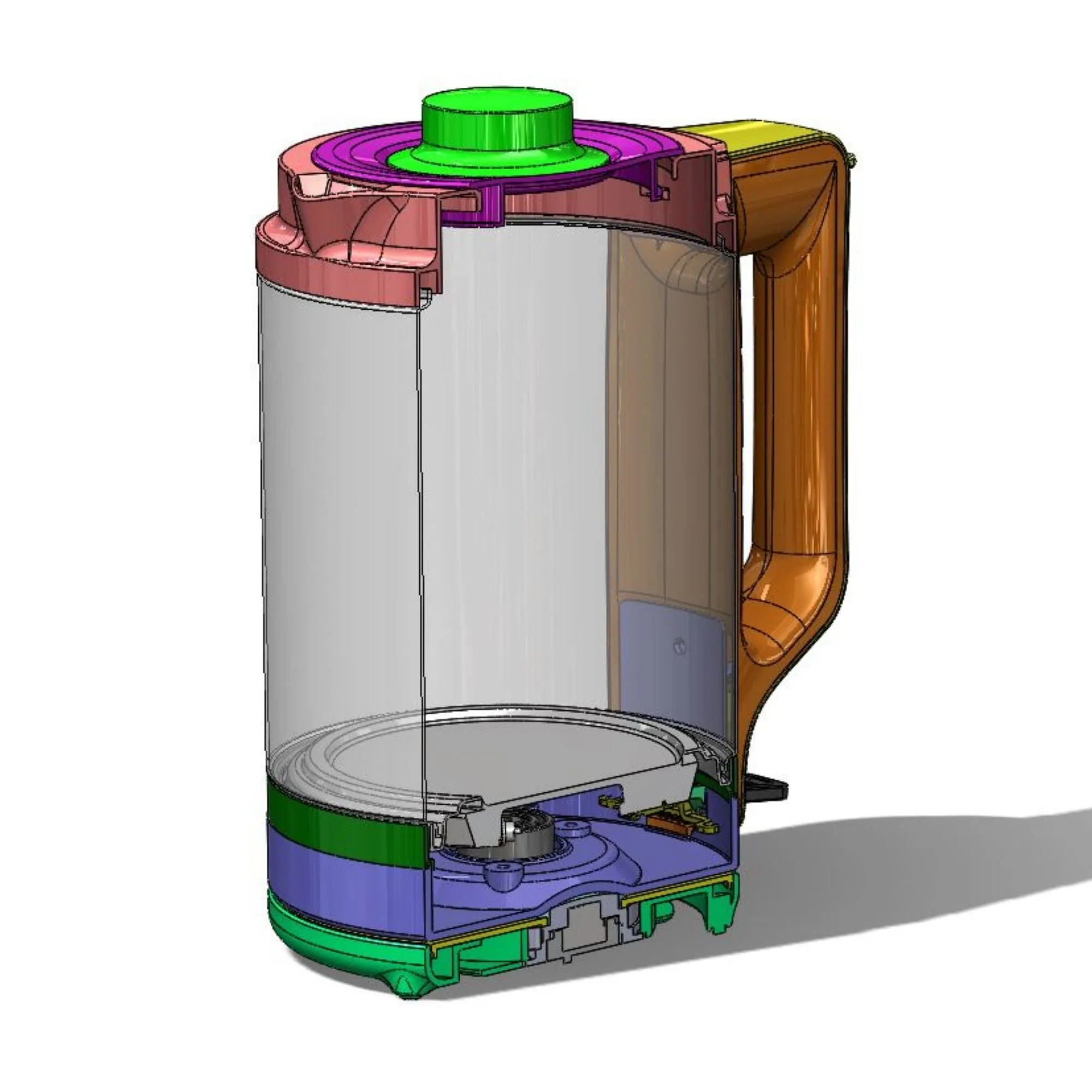

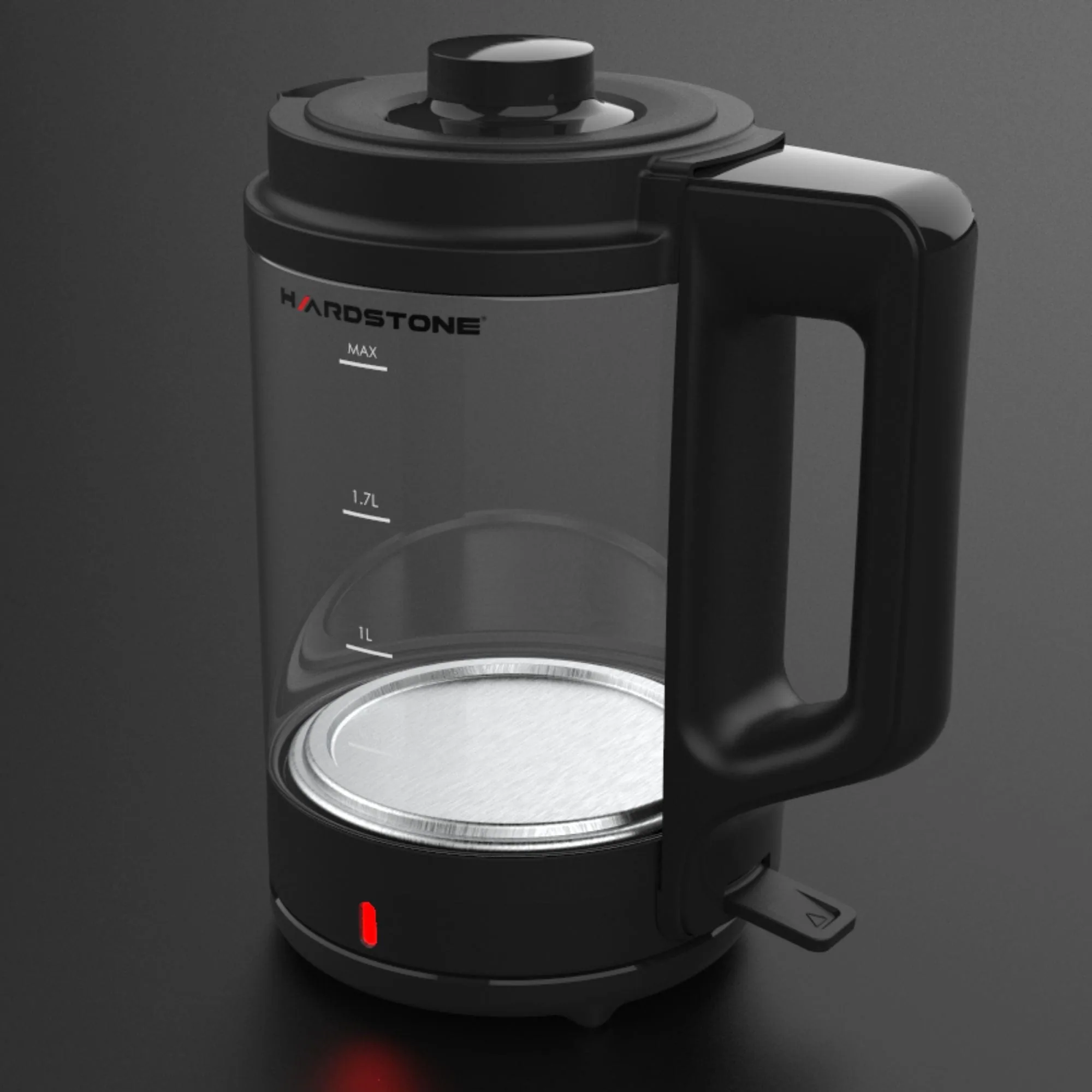

Thermal-shock-resistant borosilicate glass carafe locks into a food-grade polymer housing with high-temperature silicone compression seals.
Concealed 1.8kW stainless heating element delivers rapid convective boil cycles regulated by a precision bi-metallic thermal controller and dry-boil cutoff.
Ergonomically counterbalanced handle with internal thermal heat-break ribbing provides comfortable, spill-proof pouring during boiling cycles.

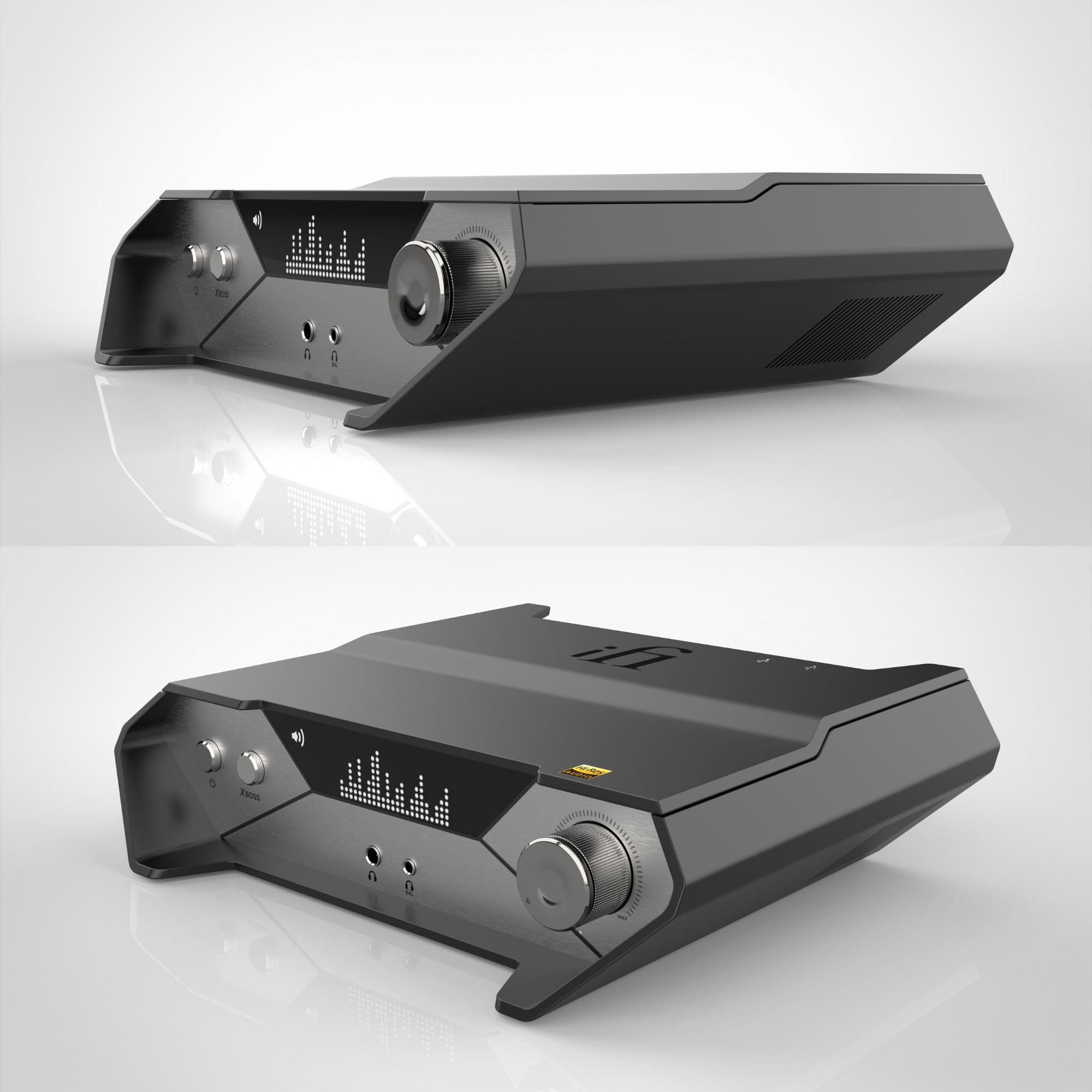

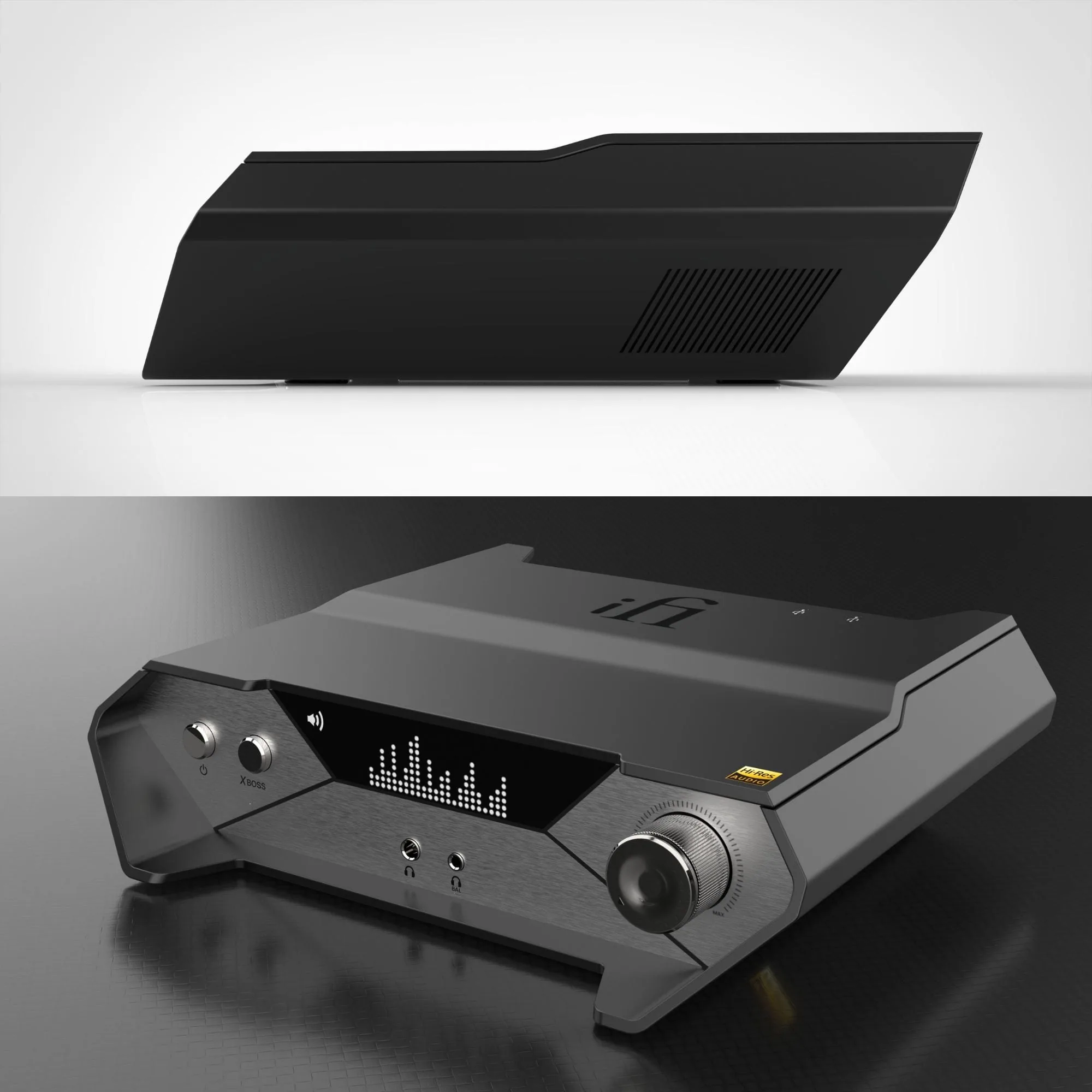

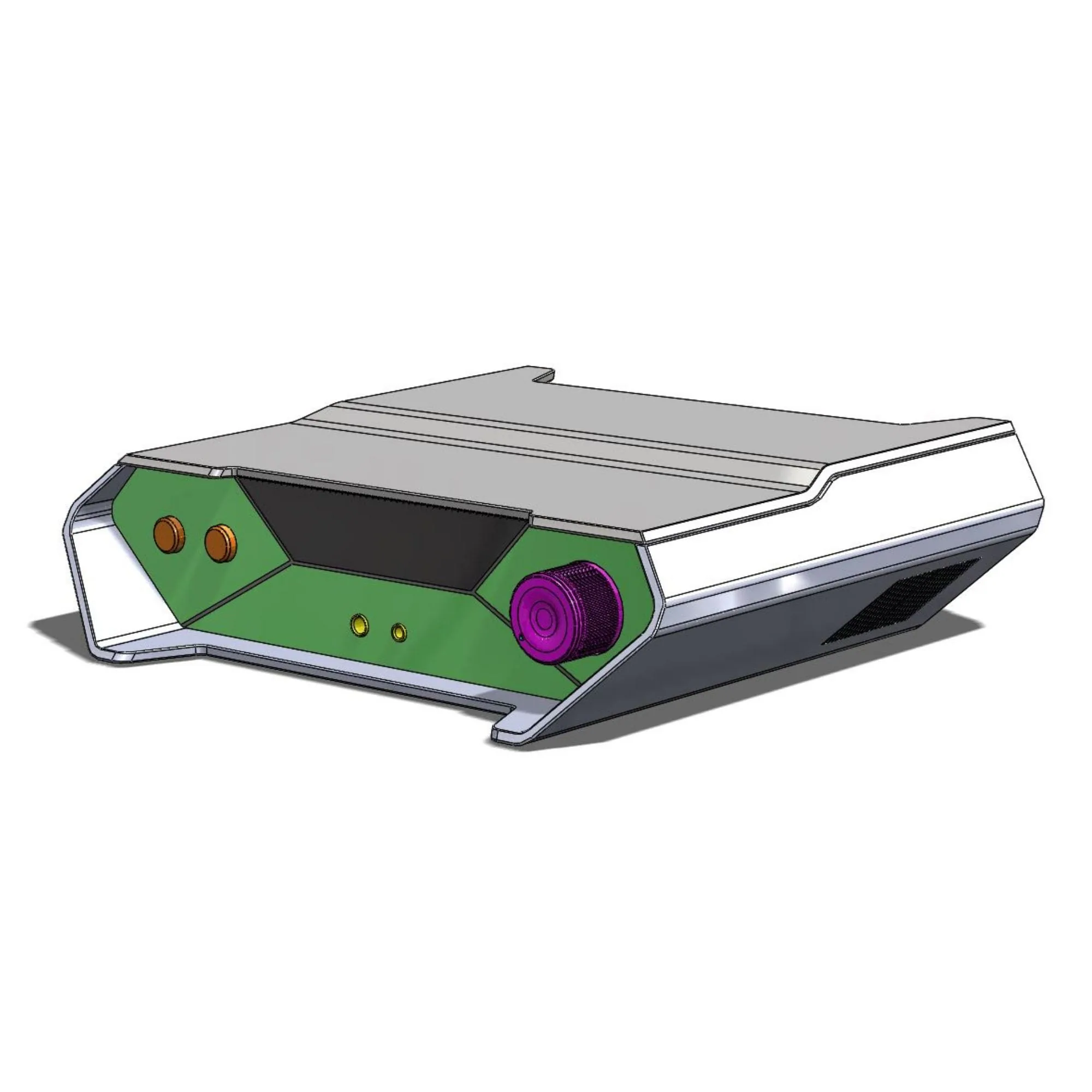

Chassis engineering for iFi Audio, precision sheet metal enclosure, CNC knurled aluminum controls, passive thermal venting, and internal EMI isolation partitions engineered for audiophile-grade fidelity.
Extruded 6063-T6 aluminum front panel and brushed steel chassis act as a passive thermal sink, dissipating output stage heat through micro-vented acoustic slots.
Weighted CNC knurled volume knob couples to a high-tolerance damped rotary potentiometer for ultra-smooth mechanical tactile feedback.
Internal sheet-metal partition shields isolate the sensitive low-noise analog signal path from switch-mode power supply electromagnetic interference.

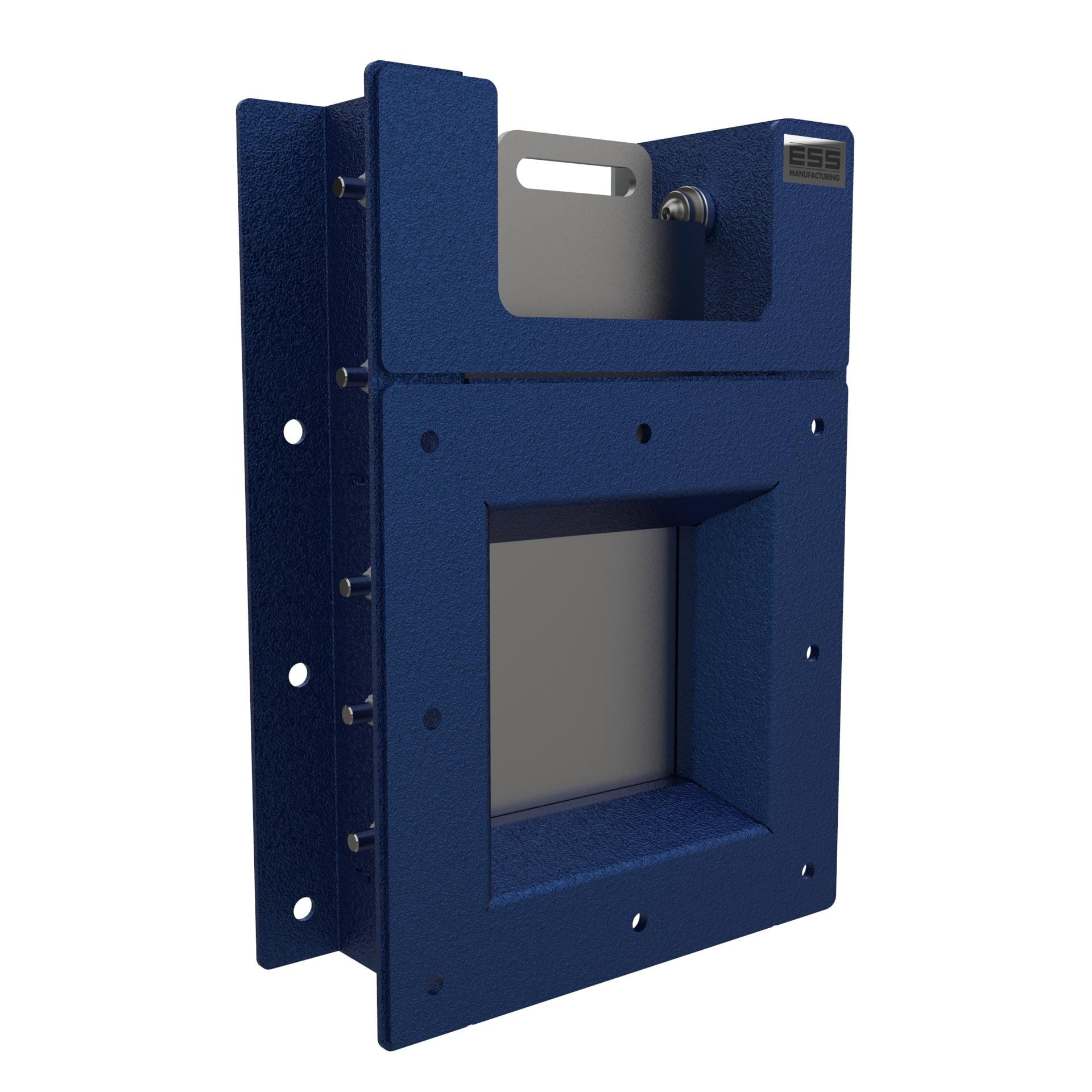

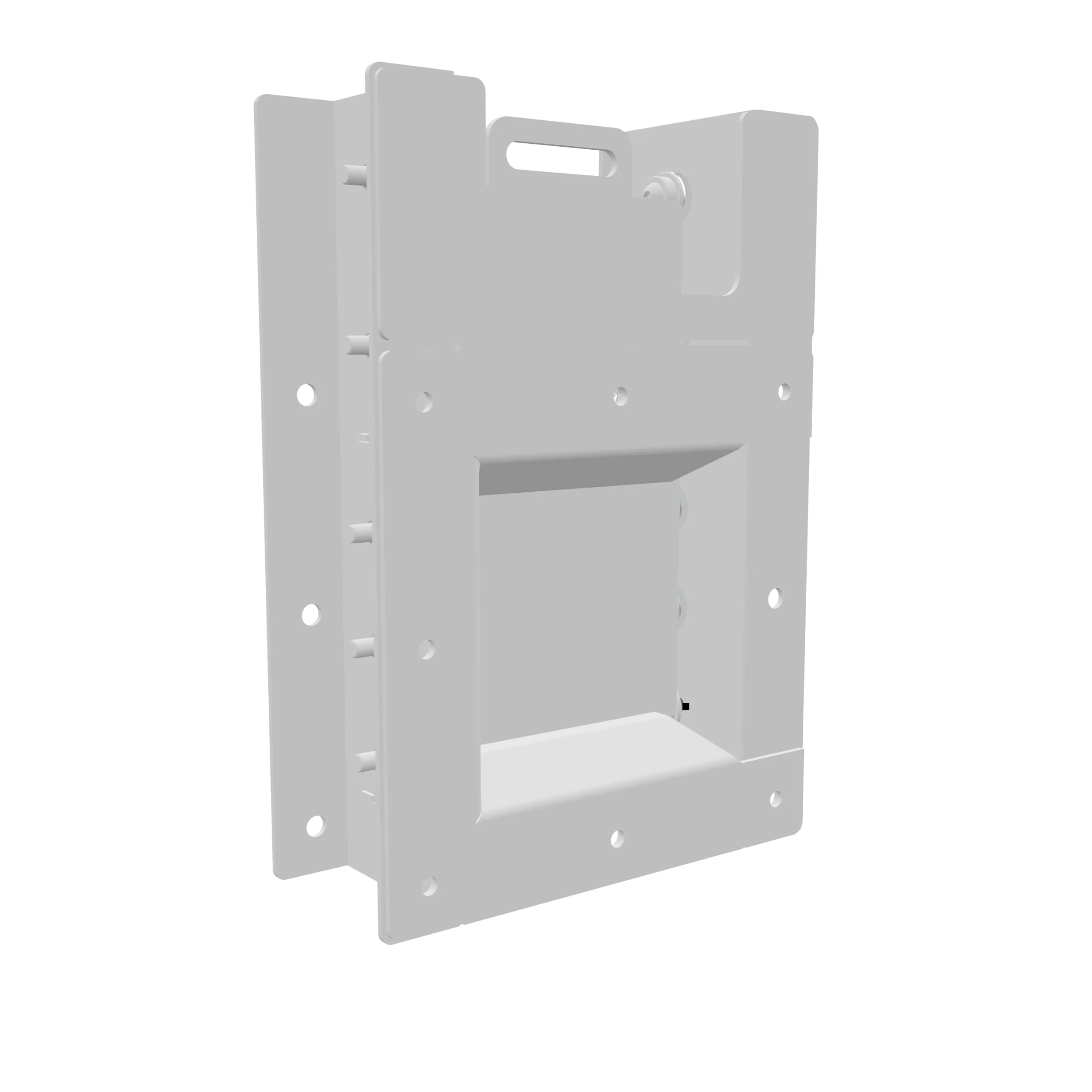

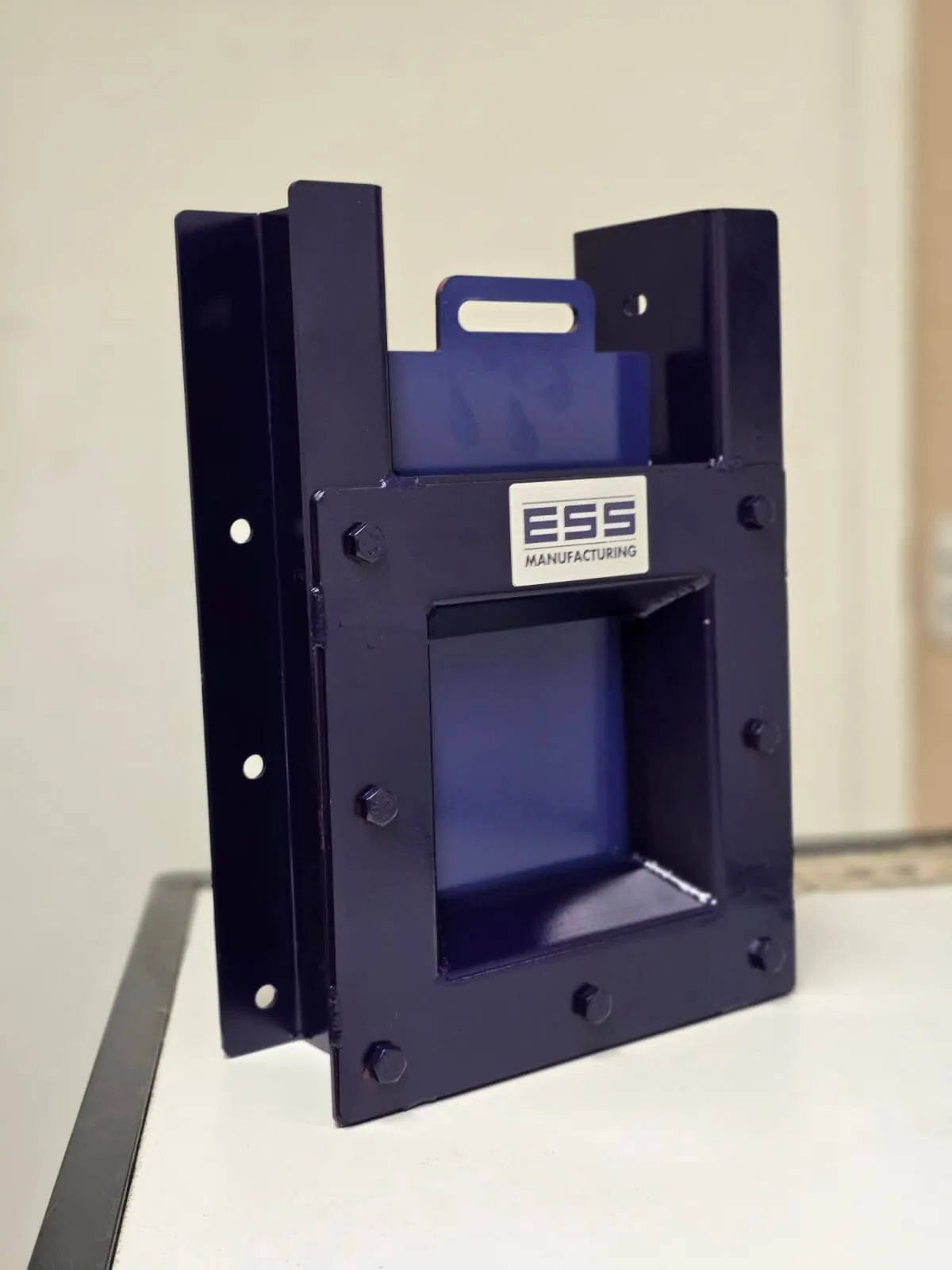

Heavy-duty manual square slide gate valve engineered for ESS Manufacturing, concept to fabrication-ready 3D CAD, featuring heavy structural steel plates, ultra-low-friction polymer guides, and bolted flange connections.
Precision Acme lead screw connected to a balanced handwheel converts rotary torque into linear blade movement with high mechanical advantage.
Chamfered bevel-edge stainless blade cuts through standing columns of powder, pellets, or grain without wedging or binding in the slide guides.
Self-adjusting UHMWPE perimeter packing gland maintains dust-tight hermetic isolation against process vacuum or positive pressure differentials.

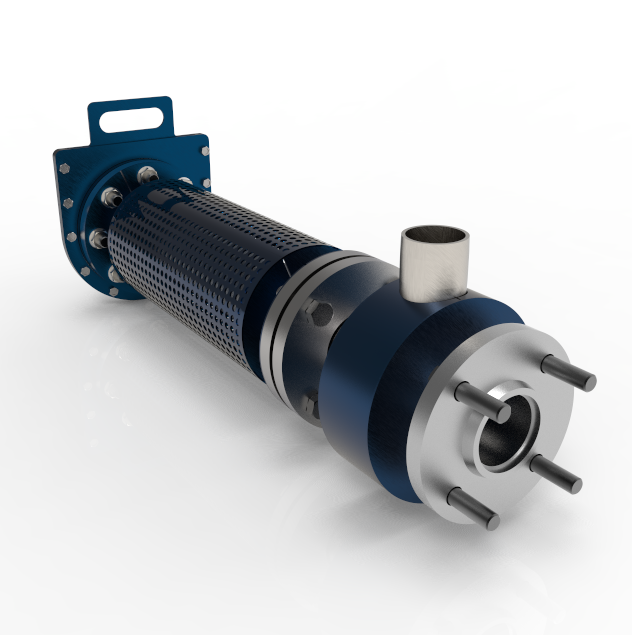

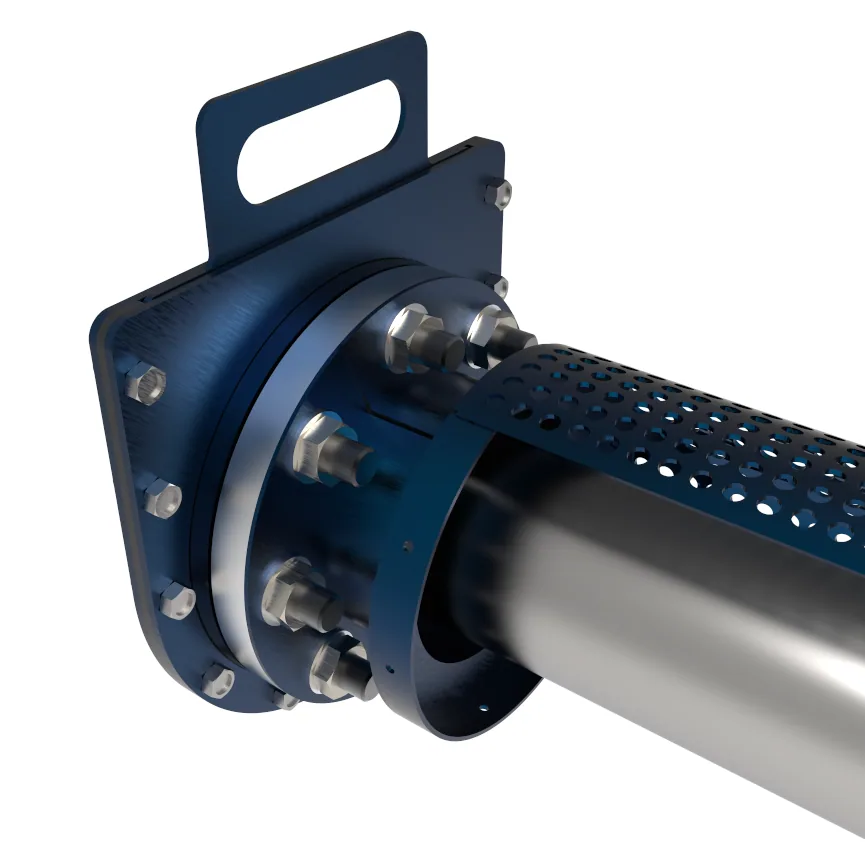

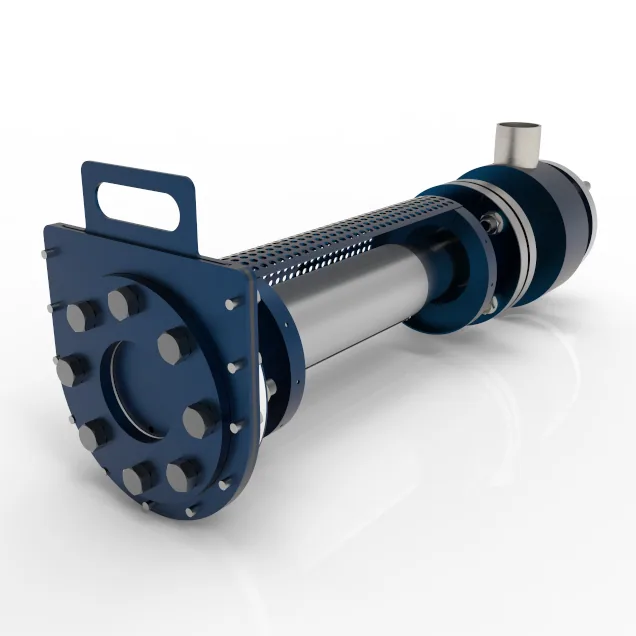

Bespoke high-temperature pipe heating gate engineered for Luhr Filter, 3D CAD modeling covering thermal jacket circulation, tight valve seating, and expansion compensation for flue gas filtration ducts.
Surrounding double-walled heating jacket circulates thermal medium around the seating perimeter to keep volatile exhaust gases above condensation dewpoint.
Heavy-duty cast damper blade oscillates on self-lubricating high-temp graphite sleeve bearings that accommodate radial thermal expansion without seizure.
High-torque pneumatic quarter-turn actuator provides fail-safe closing in less than 2 seconds during emergency process containment sequences.

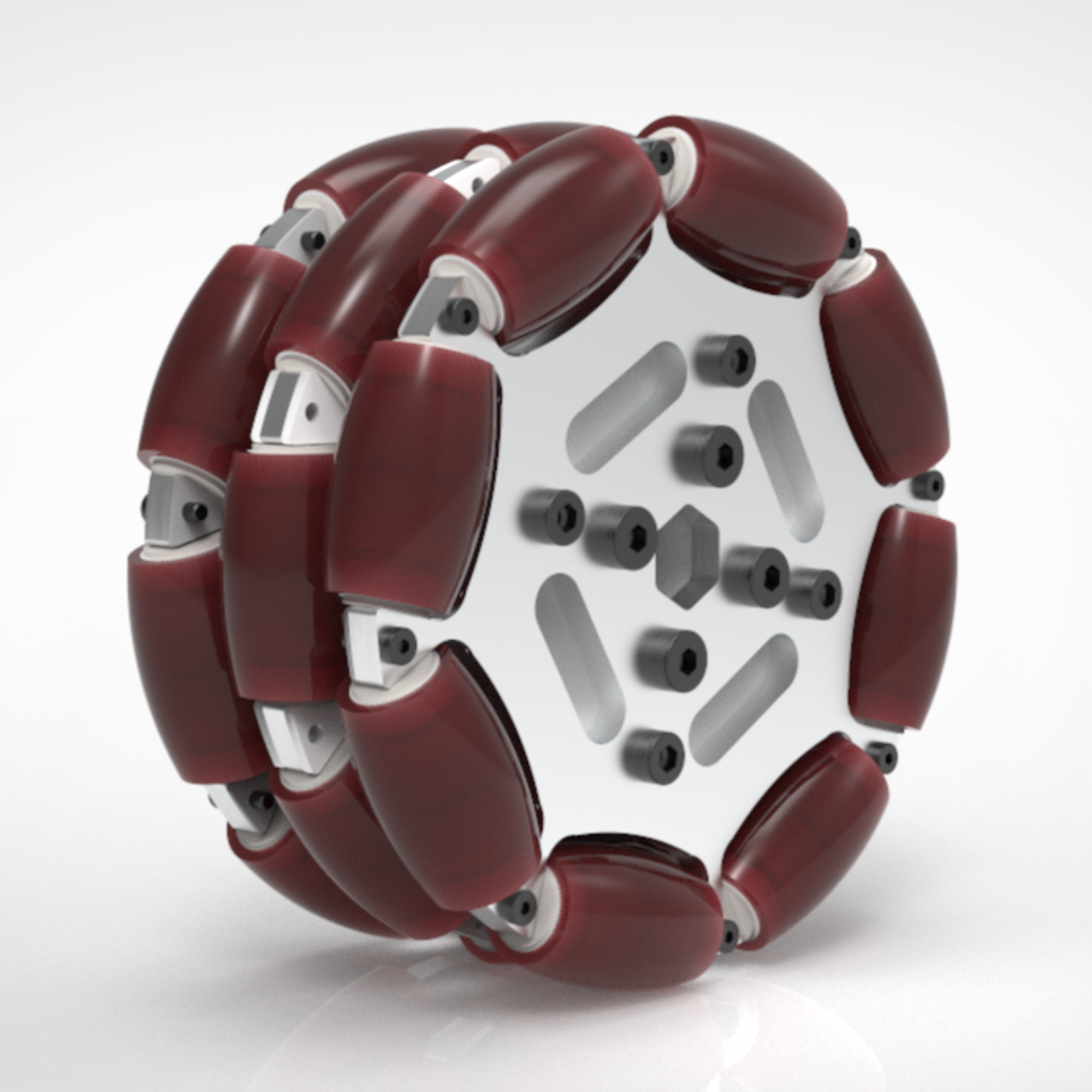

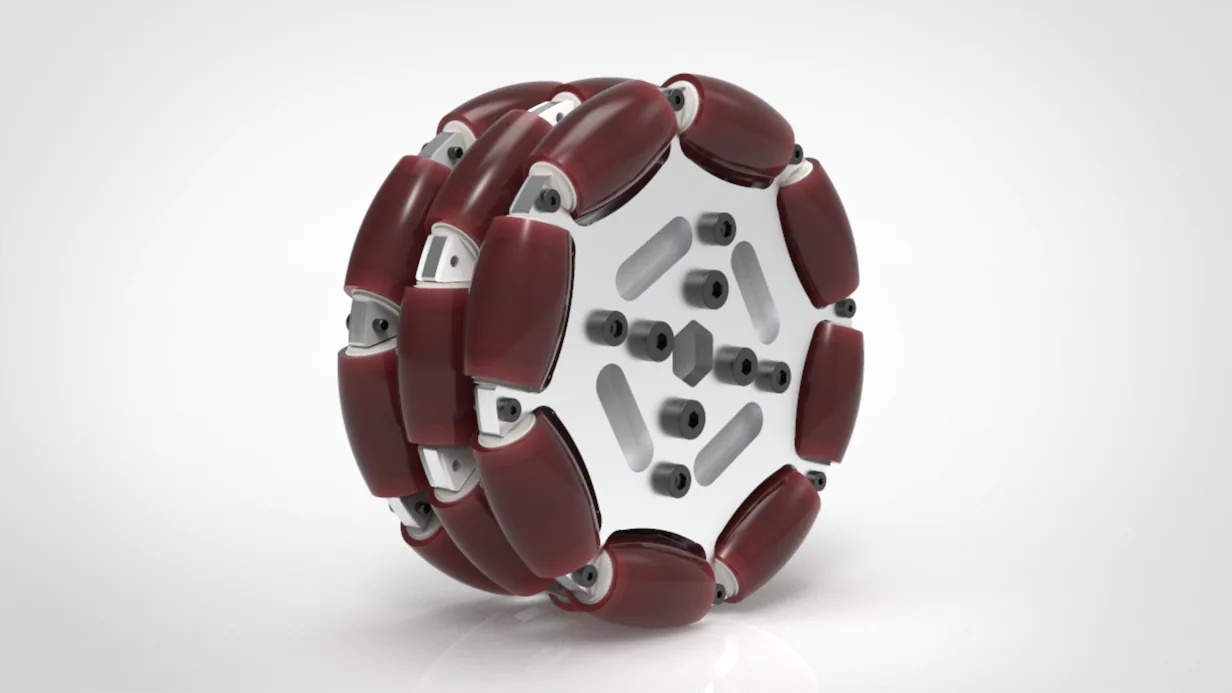

Mechatronic Research Lab (MRL) omnidirectional wheel, polyurethane barrel sub-rollers, dual CNC machined hub plates, and needle bearing mounts engineered for 360-degree autonomous holonomic drive systems.
Sub-rollers angled at 45 degrees around the wheel periphery spin freely on hardened stainless axles, vectoring drive force in any direction on a 2D plane.
High-strength CNC machined 7075-T6 aluminum wheel hubs maximize structural stiffness while trimming rotational inertia for explosive acceleration.
Dual-sealed miniature bearings inside each roller deliver low rolling friction and withstand high dynamic radial and axial thrust loads.

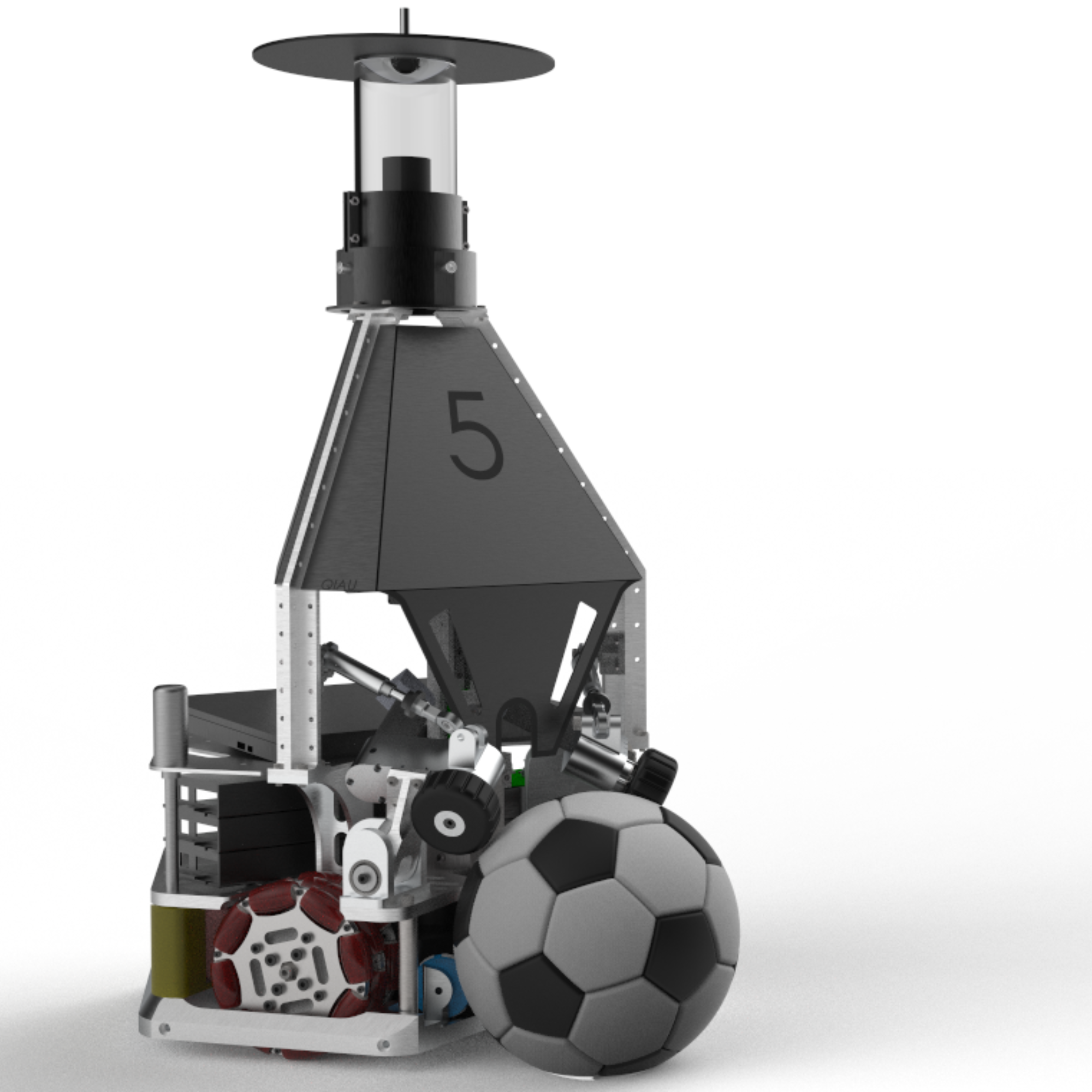

Mechatronic Research Lab (MRL) RoboCup middle-size league soccer robot, 3D mechanical chassis architecture, tri-wheel holonomic base, solenoid ballistic kicker, and active ball-handling roller arms.
Tri-wheel holonomic base layout with direct brushless motor drive delivers instantaneous omnidirectional translation, rapid spinning, and agile interception.
High-energy capacitive discharge solenoid powers a pneumatic ballistic kicker assembly with adjustable launch elevation and projectile speed.
Dual counter-rotating elastomeric roller arms trap the soccer ball against the chassis frame in full compliance with FIFA RoboCup regulations.

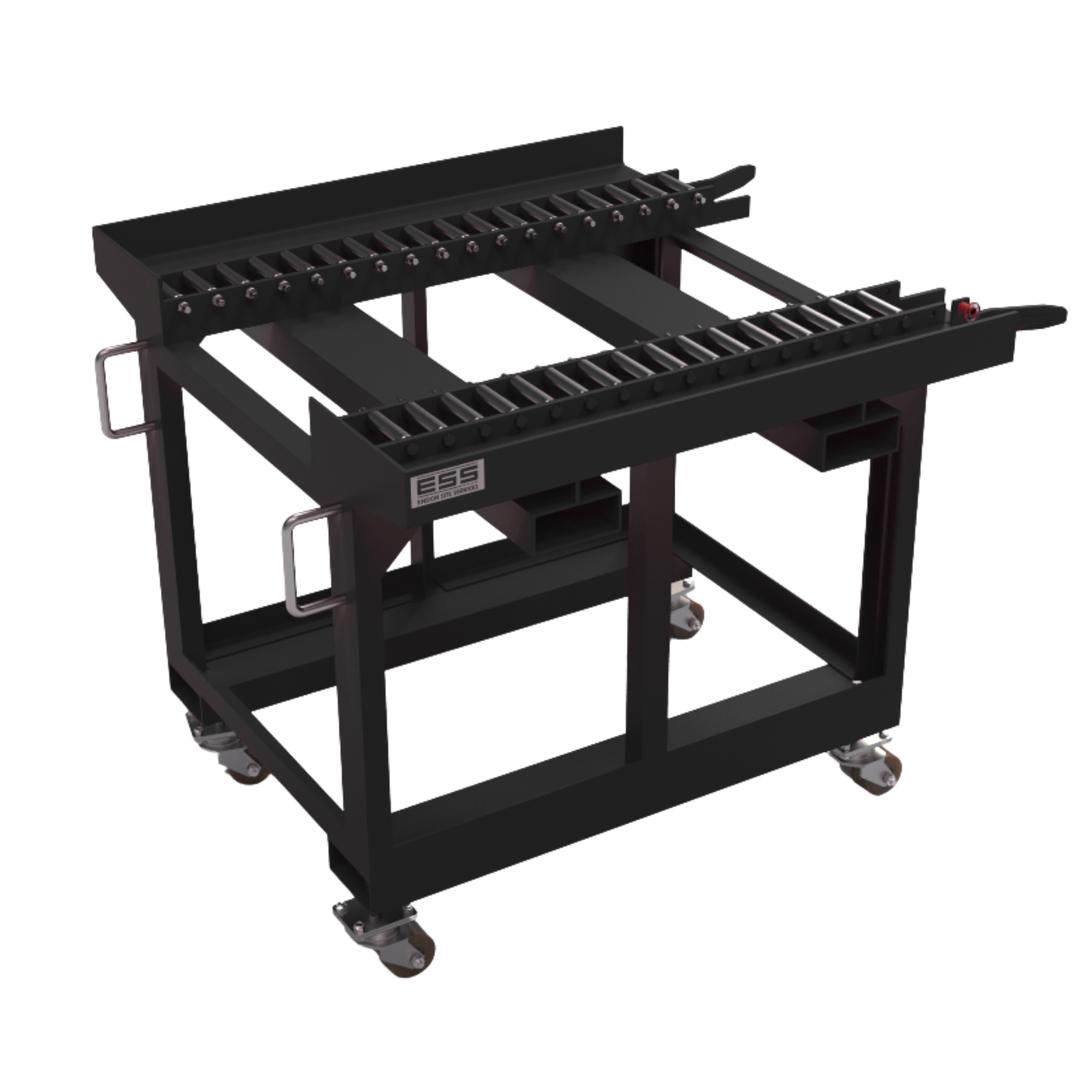

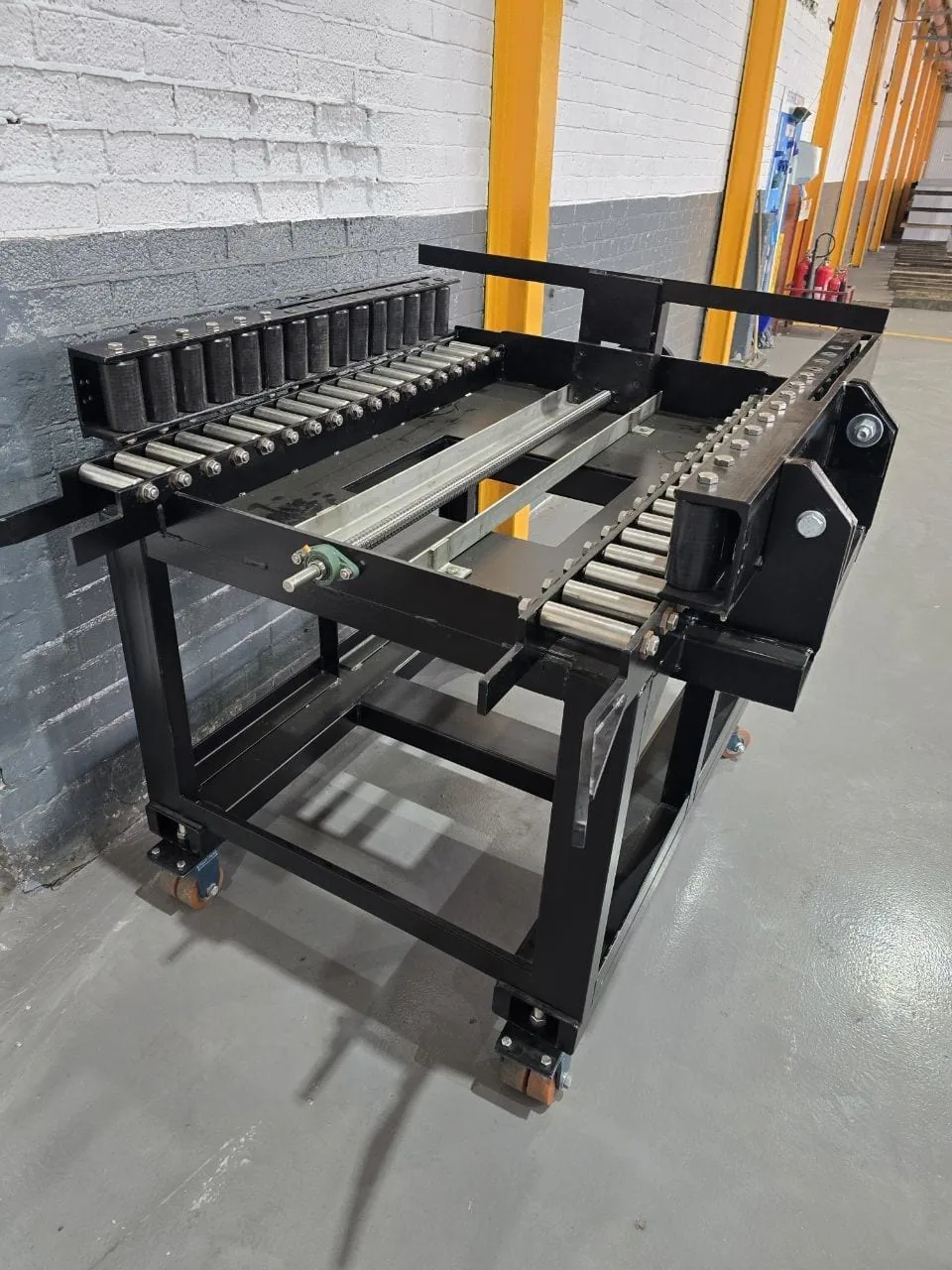

Heavy-duty mobile conveyor system engineered for Greif, structural steel box-section chassis, chevron-patterned vulcanized belt, tow hitch, and 360-degree lockable swivel casters for factory site mobility.
FEA-optimized heavy structural steel chassis withstands concentrated drum impact loading during continuous truck and rail hopper discharge.
Heavy-duty polyurethane swivel casters with 360-degree lockable swivel heads allow single-operator manual maneuvering and firm parking lockup.
Chevron-patterned vulcanized conveyor belt driven by a shaft-mounted hollow-bore helical gearmotor prevents drum slippage on steep incline angles.

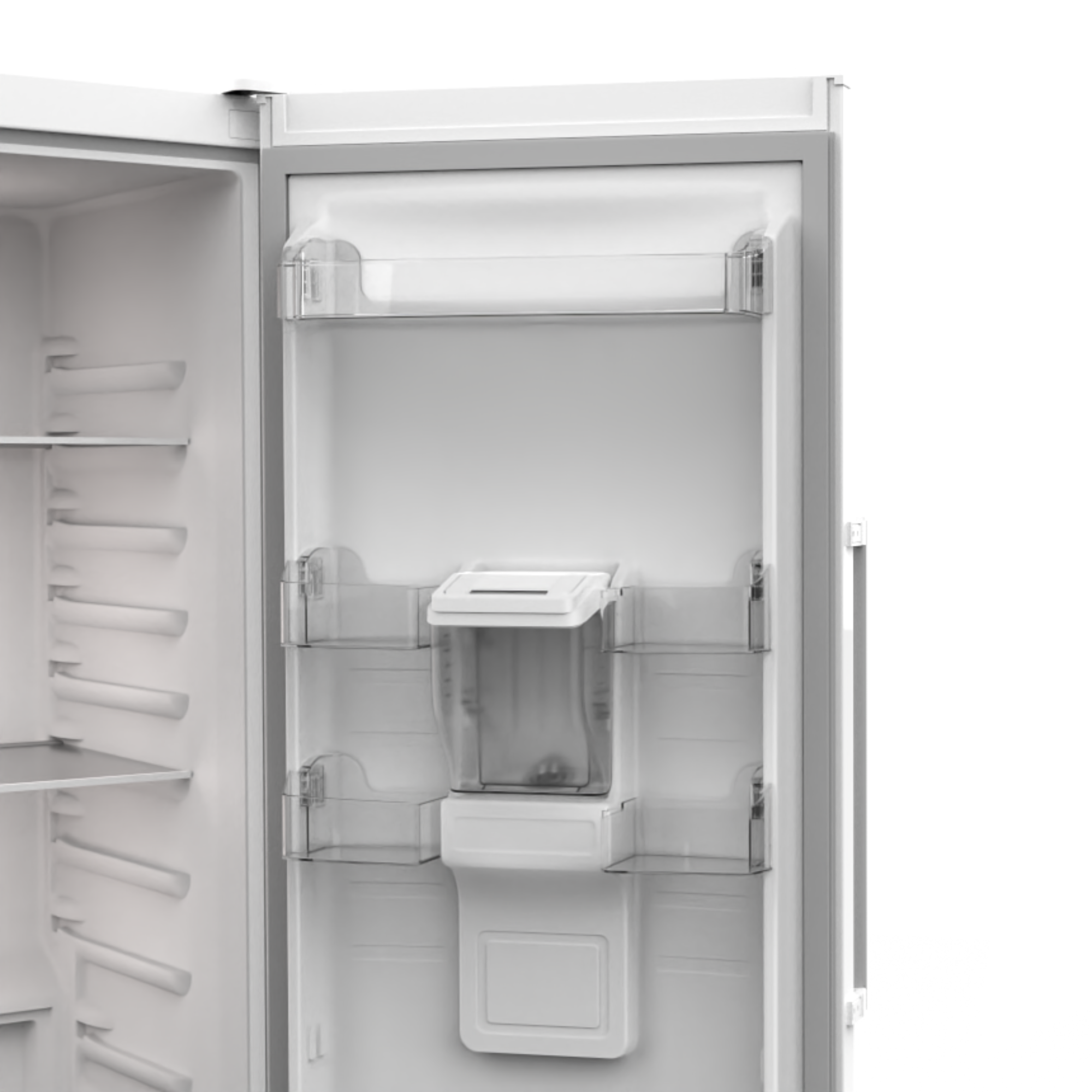

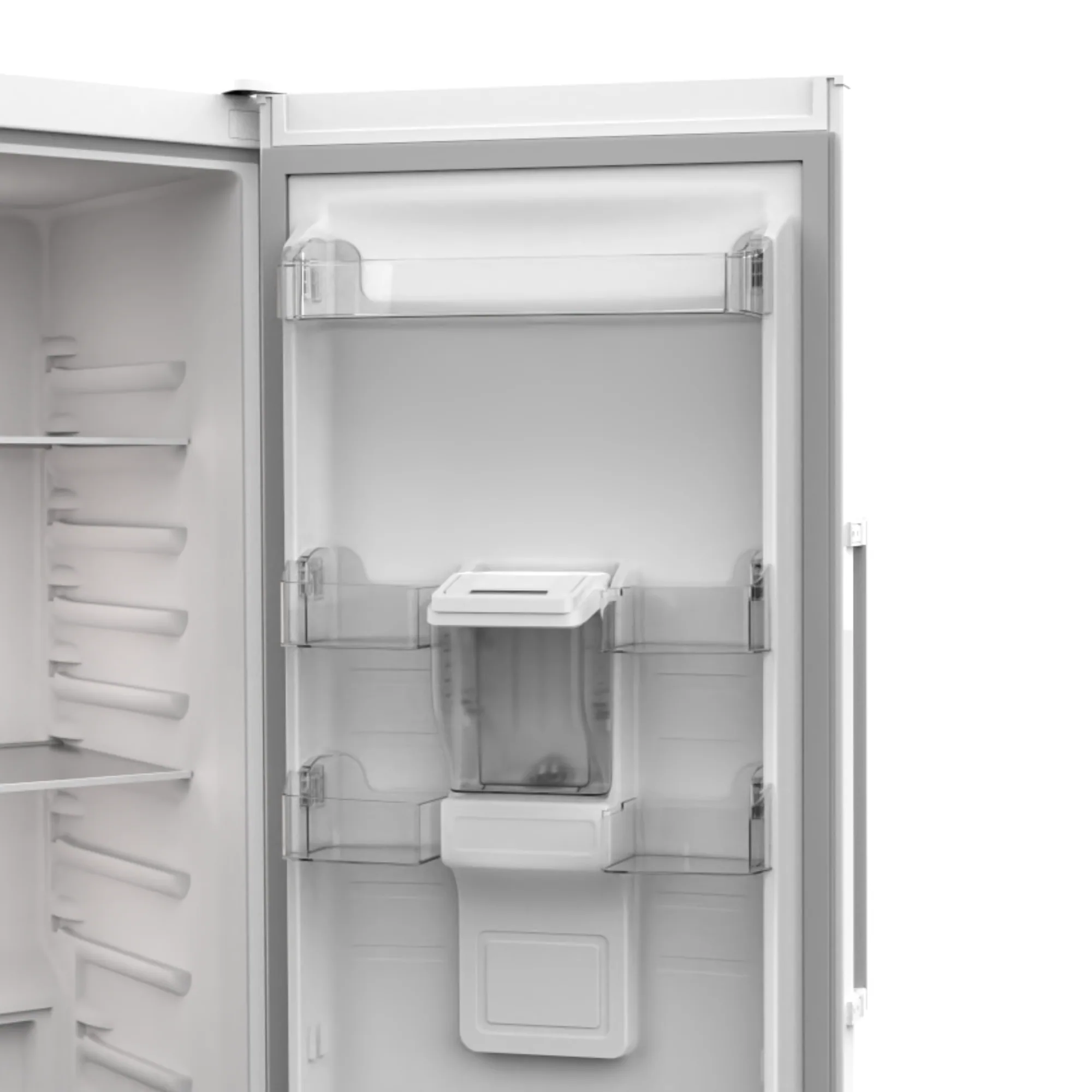

Thermoformed refrigerator door liner engineered for Pars Appliance, full 3D CAD modeling detailing vacuum-formed snap-fit shelf brackets, dairy compartments, and perimeter magnetic seal retaining channels.
Deep-draw vacuum-formed high-impact polystyrene (HIPS) incorporates structural ribs to maintain flat dimensional tolerances under freezing cycles.
Continuous perimeter retaining channel securely grips the co-extruded magnetic gasket to maintain an airtight thermal barrier against the cabinet.
Integrated modular cantilever lug tracks allow users to customize shelf and bottle balcony heights without needing fasteners or tools.

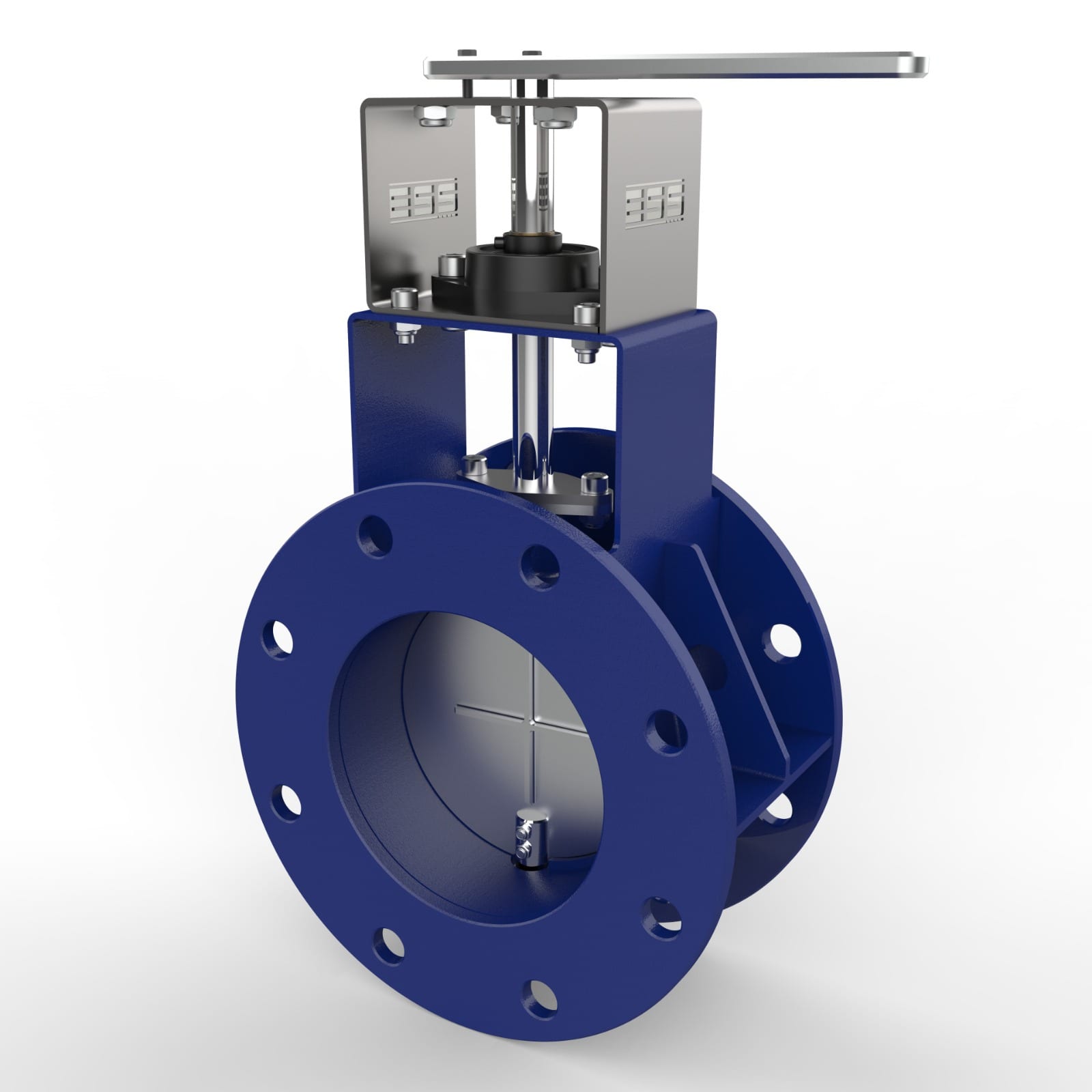

Heavy-duty industrial butterfly damper valve designed for ESS Site Service, cast ductile iron body, precision stainless through-shaft, outrigger bronze bushings, and manual worm gearbox actuator for high-volume gas modulation.
Aerodynamically contoured cast disc rotates 90 degrees inside the flanged casing to provide low-resistance flow modulation and positive gas shutoff.
Stainless steel through-shaft rotates inside outrigger bronze sleeve bushings that isolate mechanical friction surfaces from corrosive gas streams.
High-ratio manual worm gearbox with position indicator dial allows precise incremental throttling against high flue gas velocities.
Upload your drawings, CAD models or project specifications. Our engineers will review your requirements and provide an immediate assessment and quote.
