Cadrill provides mechanical design, 3D CAD, fabrication drawings, reverse engineering and 3D scanning services for manufacturers, fabricators and industrial businesses across Liverpool and the UK.

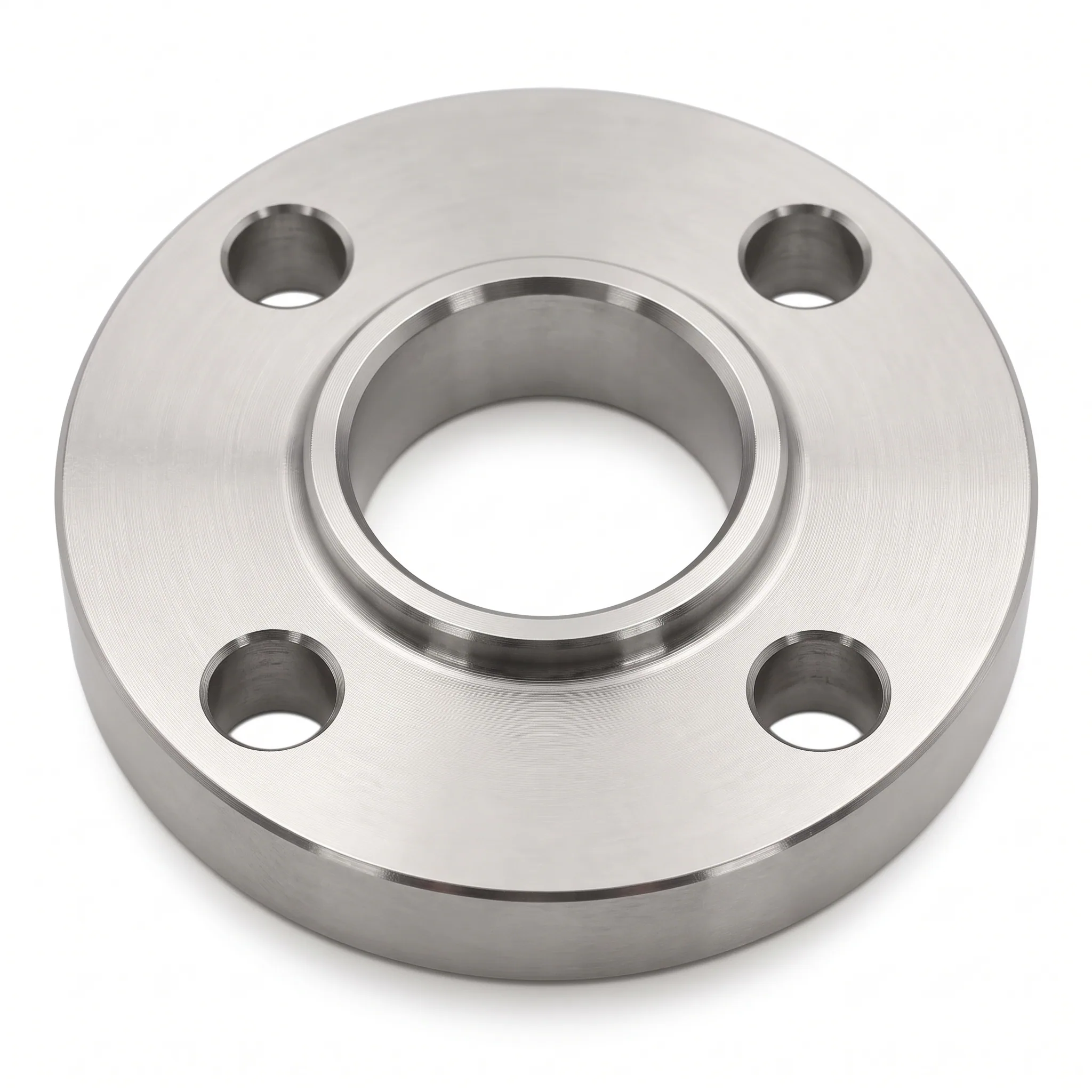

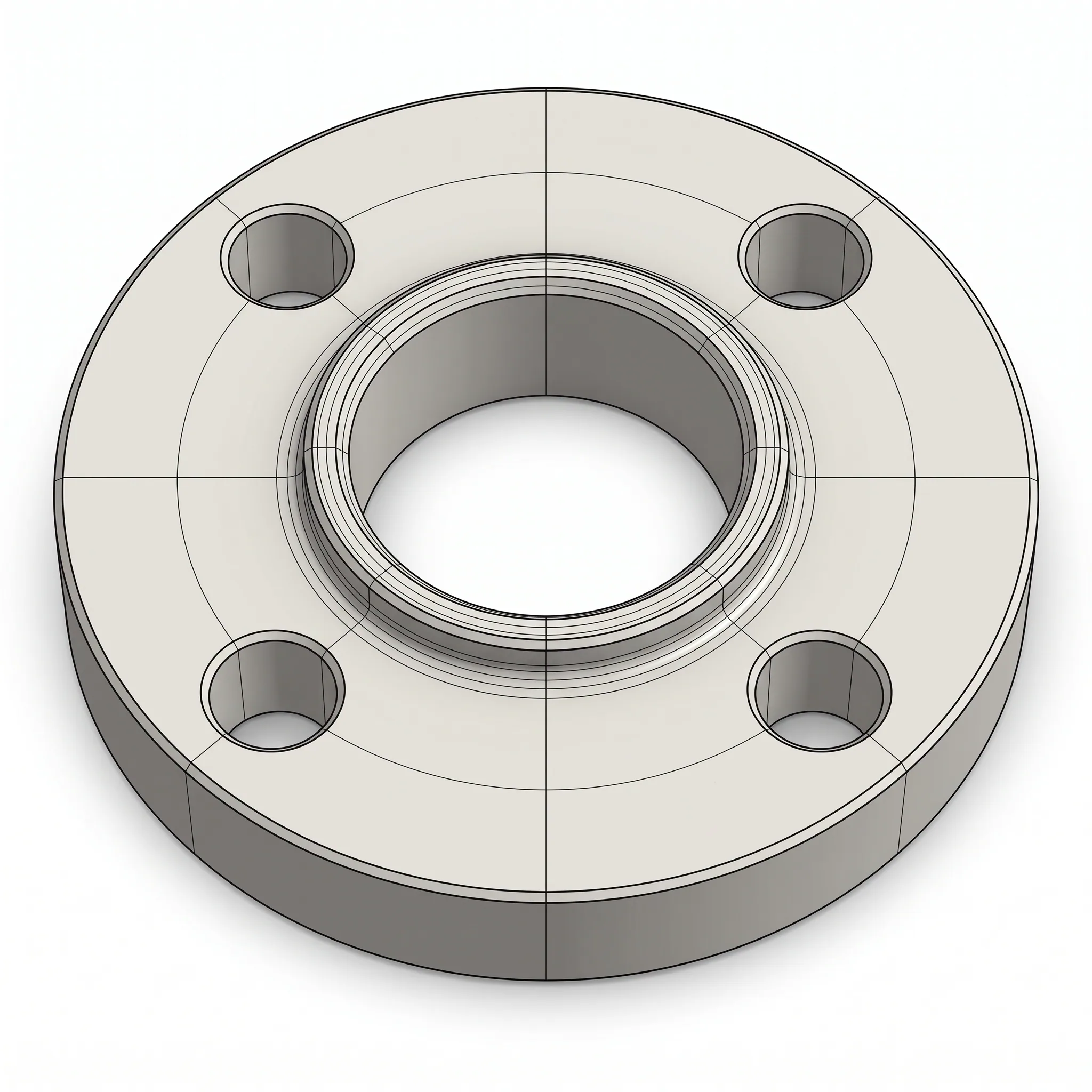

Every model in our CAD Library is built to match the manufactured part, dimension for dimension. This ASME B16.5 (ASA) & BS EN 1092-1 PN16 flange is modelled to the exact bore, bolt pattern, and face dimensions of the physical component, so what you download is what actually bolts into your pipeline.
Explore the CAD Library

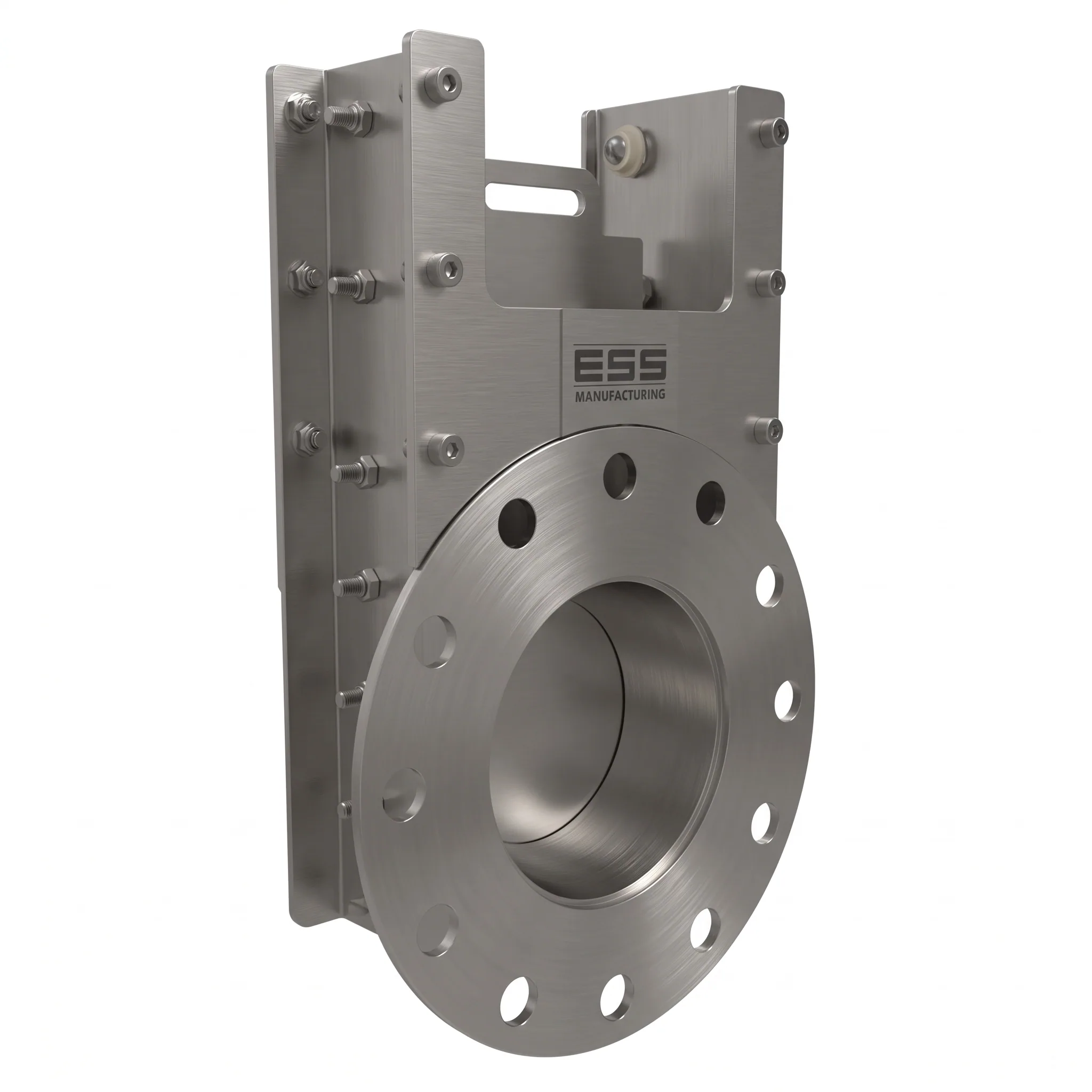

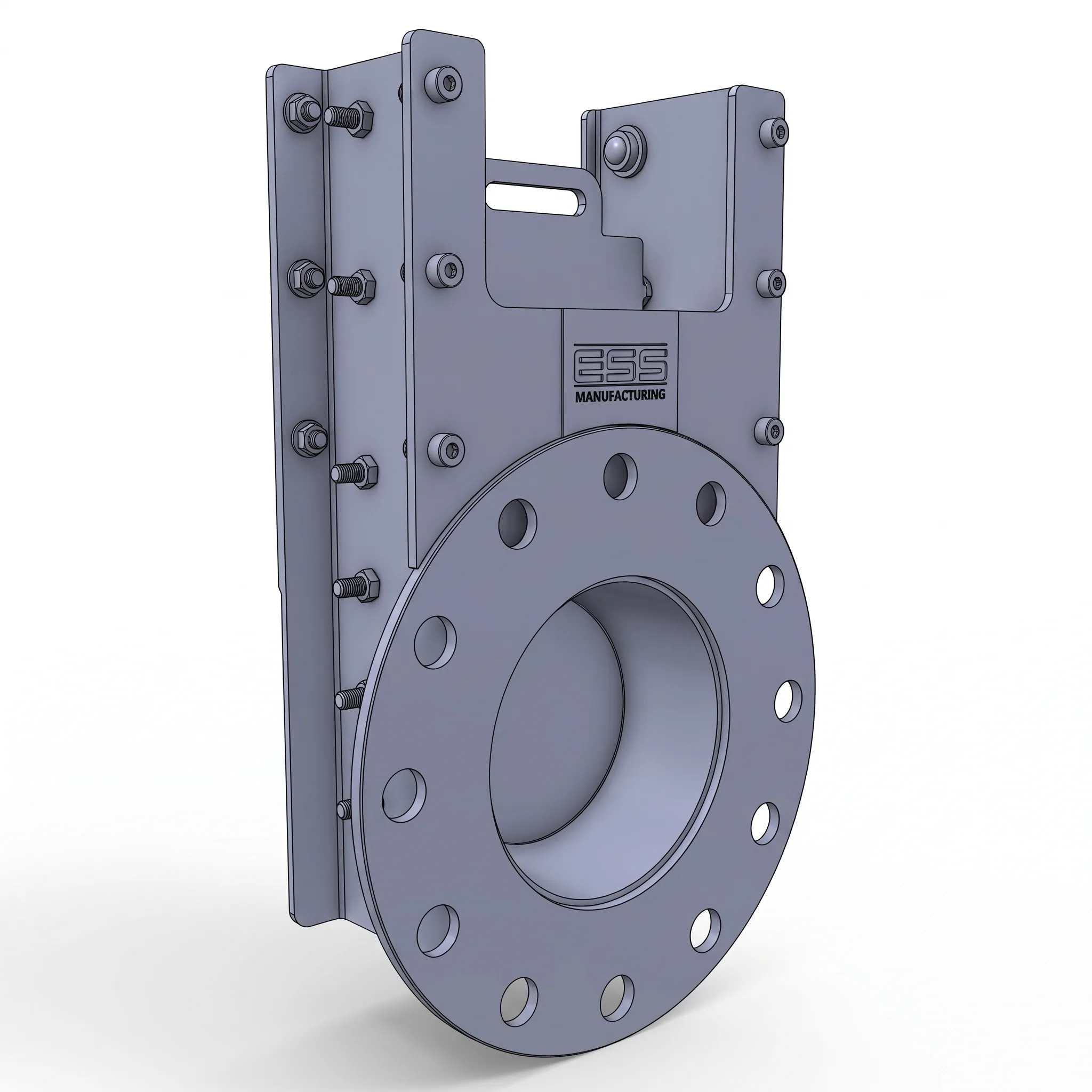

This DN150 Manual Square Slide Gate Valve is fabricated to order in Stainless Steel by Ensign Manufacturing for bulk solids, powder, and gravity-fed material handling applications. Like every product in our CAD Library, its 3D model is built to match the manufactured valve dimension for dimension, so what you download reflects exactly what gets fabricated and delivered.
Explore Fabricated Valves
Tell us your project and your requirements

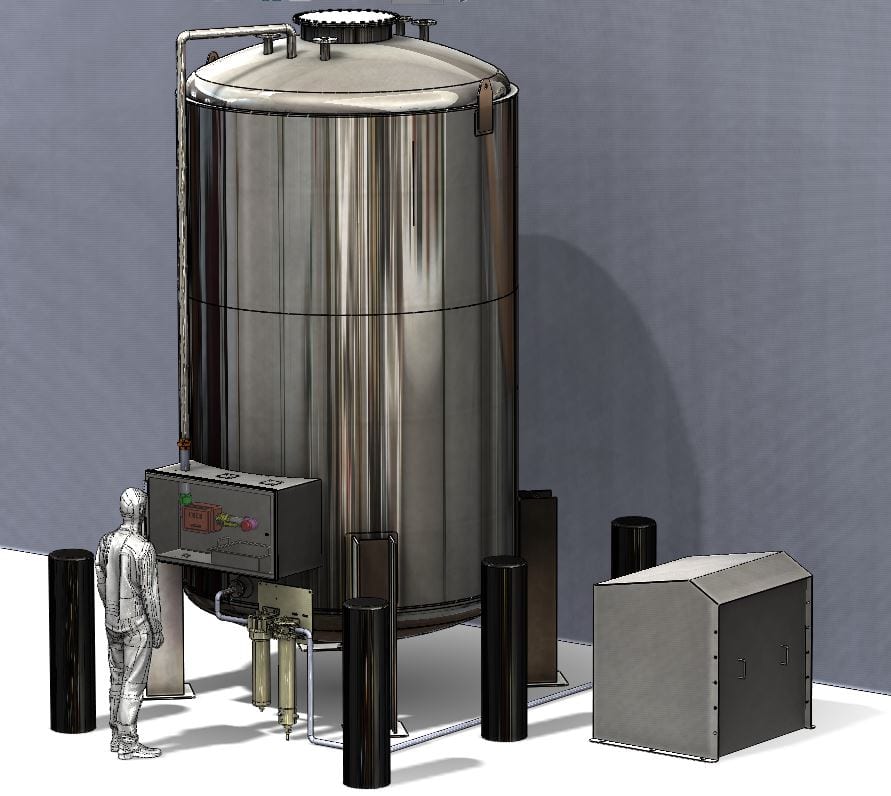

Our team start to design and prepare the fabrication drawing
Our fabrication contractor builds the drawing to the highest quality standard
Project ready to send to clients; if fabrication is requested, our contractor will deliver

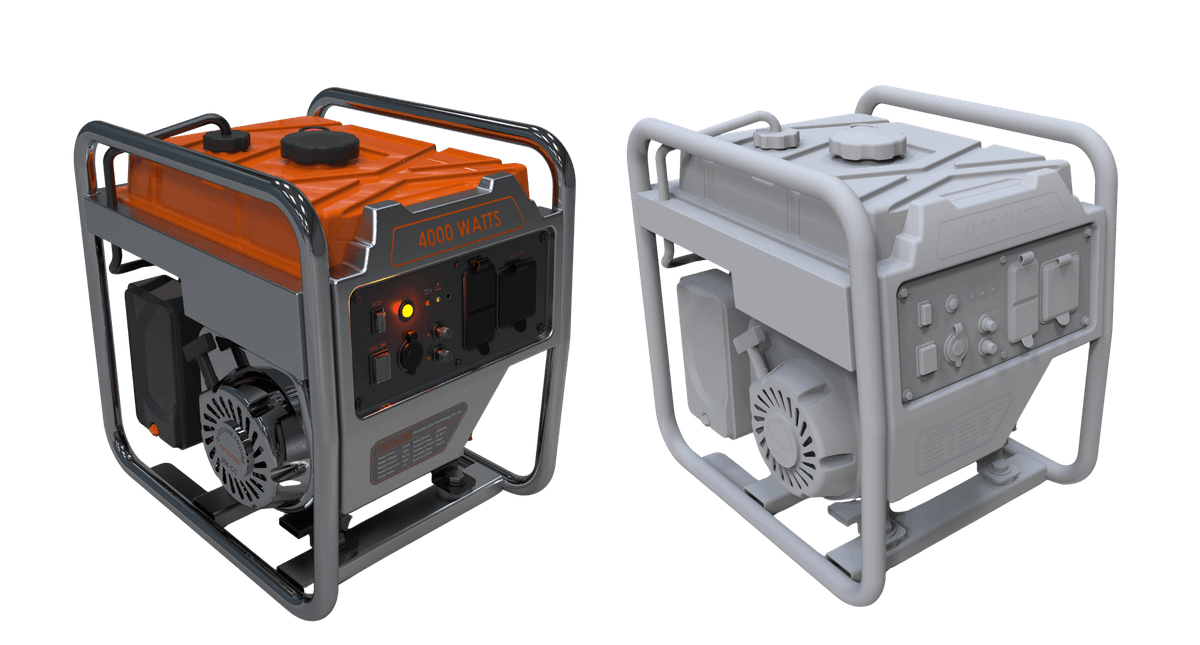

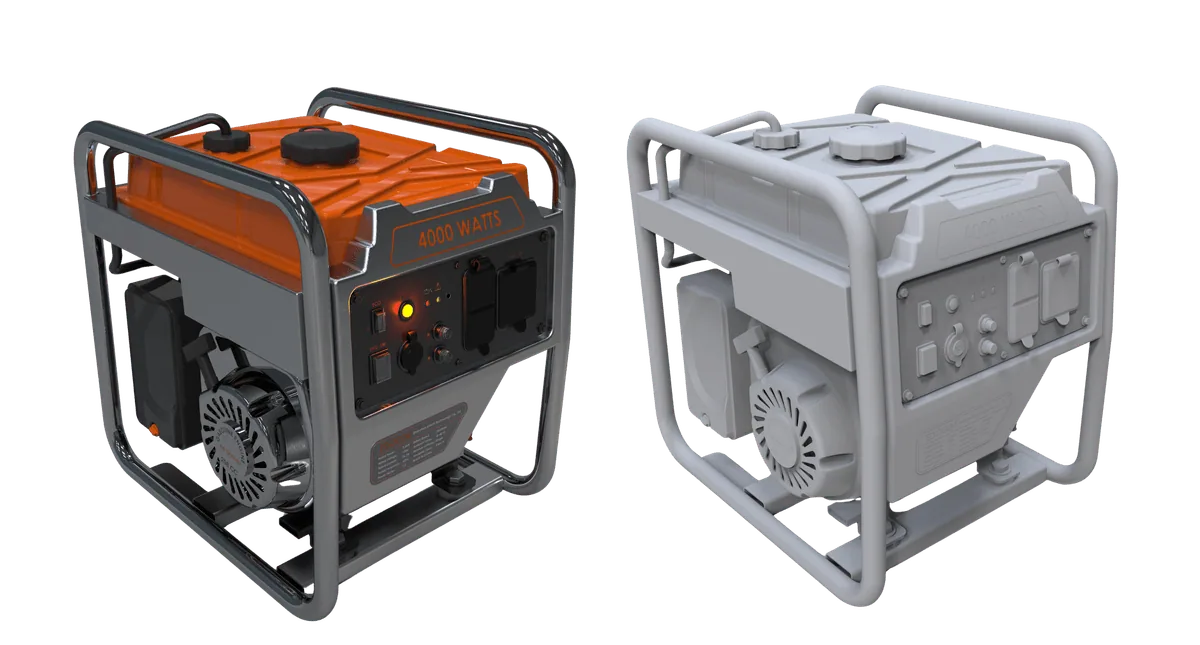

Our Liverpool-based design and drafting team turns your concept into a fully detailed, manufacture-ready model, from initial 3D CAD modeling and conceptual development through to GA drawings, BOMs and production-ready documentation. Serving fabricators across Liverpool and nationwide, every part is engineered to the exact standard needed to build it right first time.

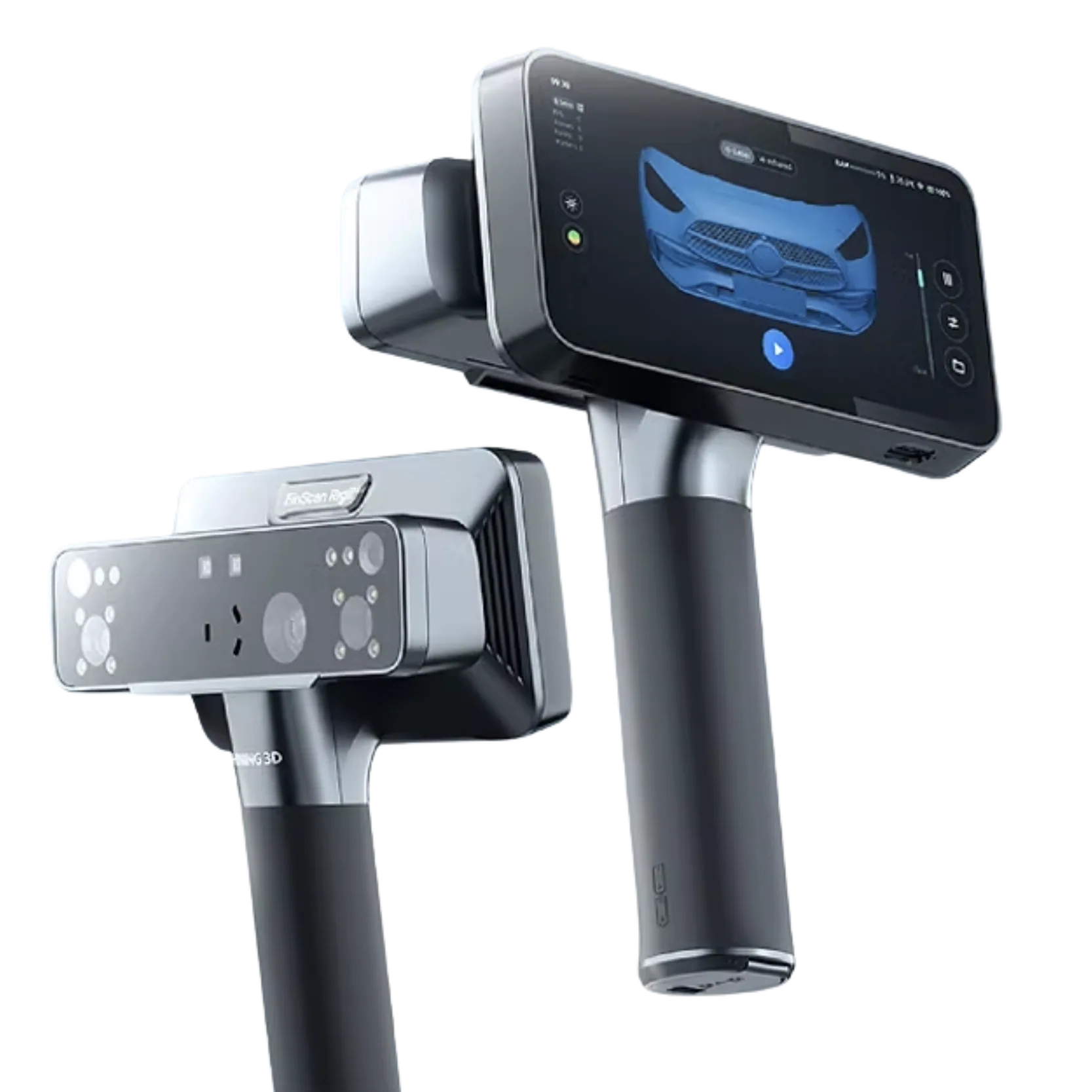

Our 3D scanning service captures real parts and assemblies with a high-accuracy handheld scanner, turning worn, legacy or undocumented components into clean, measurable data. From one-off replacement parts for Liverpool machine shops to full reverse-engineering projects across the UK, we scan on site or in the studio and deliver CAD-ready models for redesign, manufacture or inspection.
